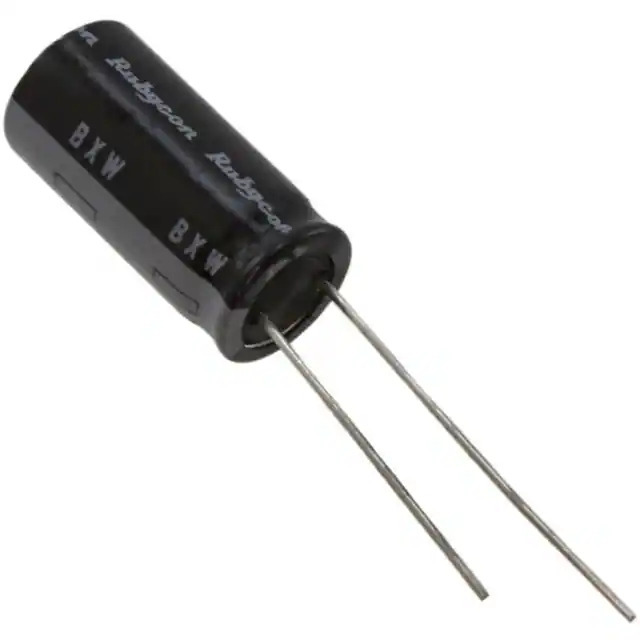

Same model may have multiple batches, images only for reference.
420BXW56MEFR18X20 Rubycon
Same model may have multiple batches, images only for reference.

420BXW56MEFR18X20

Part No 420BXW56MEFR18X20
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 56UF 20% 420V RADIAL / 56 µF 420 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series BXW
Package Bulk
Product Status Active
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 420 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 480 mA @ 120 Hz
Ripple Current @ High Frequency 1.2 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358031-420BXW56MEFR18X20
Ultra Librarian 3D Model Ultra Librarian 420BXW56MEFR18X20 CAD Model

Description

The Rubycon 1358031-420BXW56MEFR18X20 is a high-capacity aluminum electrolytic capacitor suitable for general-purpose applications.

  • Capacitance: 56 µF
  • Voltage Rating: 420 V
  • Temperature Range: -40°C to 105°C
  • Package: Radial, Can
  • Mounting Type: Through-Hole
  • Lead Spacing: 7.50mm
  • Size: 0.709" (18.00mm) diameter
  • Seated Height: 0.866" (22.00mm)
  • Lifetime: 10000 hours @ 105°C
  • Ripple Current: 480 mA @ 120 Hz
  • Status: Active
  • Series: BXW
