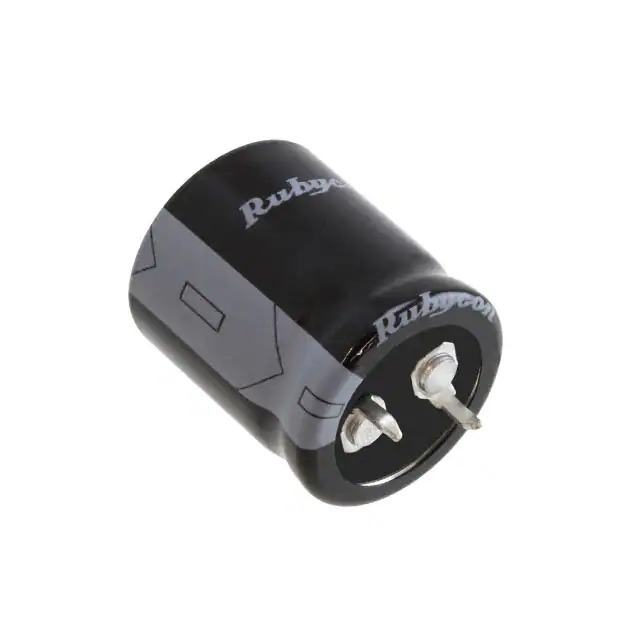

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MXG
Package Bulk
Product Status Active
Capacitance 150 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.04 A @ 120 Hz
Ripple Current @ High Frequency 1.456 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.984" Dia (25.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360795-400MXG150MEFCSN25X25
Ultra Librarian 3D Model Ultra Librarian 400MXG150MEFCSN25X25 CAD Model

Description

The 1360795-400MXG150MEFCSN25X25 is a high-quality aluminum electrolytic capacitor manufactured by Rubycon.

  • Series: MXG
  • Application: General-Purpose
  • Capacitance: 150 µF
  • Voltage Rating: 400 V
  • Temperature Range: -25°C to 105°C
  • Package: Radial, Can - Snap-In
  • Mounting: Through-Hole
  • Lead Spacing: 10.00mm
  • Diameter: 25.00mm
  • Lifetime: 3000 hours @ 105°C
  • Ripple Current: 1.04 A @ 120 Hz
  • Product Status: Active
  • REACH: Unaffected
