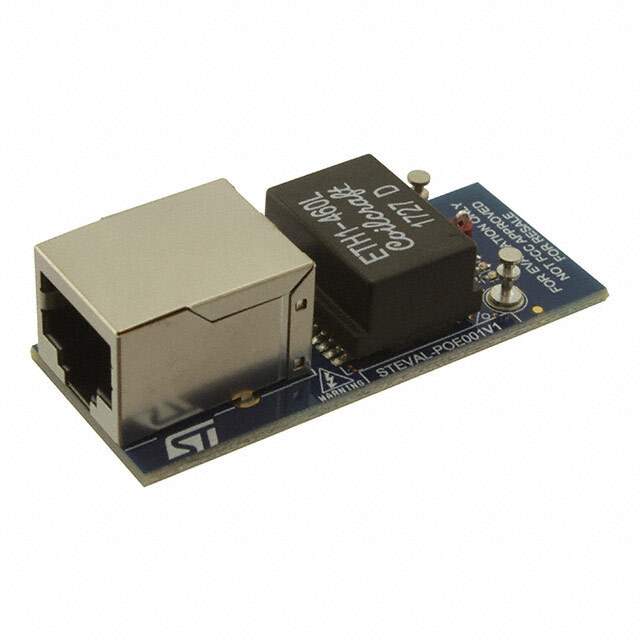

The STEVAL-POE001V1 from STMicroelectronics is an innovative evaluation board designed for users looking to delve into the capabilities and applications of Power over Ethernet (PoE). This board is a standout product for developers and engineers who require a reliable and efficient PoE solution for their embedded systems or networked devices.
The STEVAL-POE001V1 is built around the PM8804, an IEEE 802.3af compliant PoE-PD interface controller, and the PM8805, a PoE-PSE controller. Together, they provide an end-to-end solution for delivering both power and data over a single Ethernet cable, eliminating the need for additional power supplies and reducing wiring complexity. This makes it an ideal choice for applications such as IP cameras, VoIP phones, wireless access points, and smart home devices.
With its ability to handle power management, the STEVAL-POE001V1 can provide up to 13W of power, ensuring a reliable power source for connected devices. The board includes numerous features such as overcurrent protection, thermal protection, and signature detection, which are essential for the safety and longevity of the connected devices.
The evaluation board is also equipped with two RJ45 connectors for easy integration into existing networks and comes with an extensive set of documentation and software tools to help streamline development processes. The provided resources include schematic diagrams, application notes, and software libraries that can help reduce development time and accelerate time-to-market for products using PoE technology.
The compact design and robust construction of the STEVAL-POE001V1 make it a practical and versatile tool for both prototyping and educational purposes. By choosing the STEVAL-POE001V1, developers gain access to STMicroelectronics' renowned support and quality, ensuring a smooth and successful project development experience.
