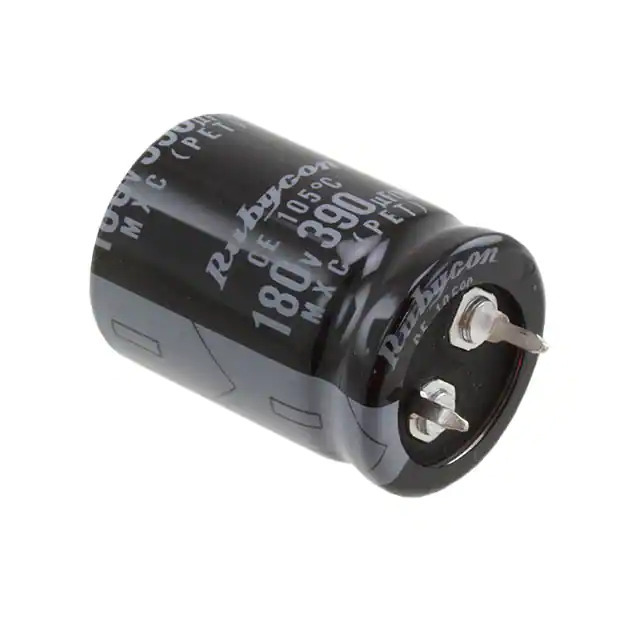

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MXC
Package Bulk
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.1 A @ 120 Hz
Ripple Current @ High Frequency 1.54 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360684-400MXC220MEFCSN35X25
Ultra Librarian 3D Model Ultra Librarian 400MXC220MEFCSN35X25 CAD Model

Description

The Rubycon MXC series is a high-quality aluminum electrolytic capacitor suitable for general-purpose applications. Bold text is Rubycon MXC.

  • Capacitance: 220 µF
  • Voltage Rating: 400 V
  • Temperature Range: -25°C to 105°C
  • Lifetime: 3000 hours @ 105°C
  • Package: Radial, can - snap-in
  • Mounting: Through-hole
  • Diameter: 1.378" (35.00mm)
  • Height: 1.063" (27.00mm)
  • Ripple Current (Low Frequency): 1.1 A @ 120 Hz
  • Ripple Current (High Frequency): 1.54 A @ 10 kHz
