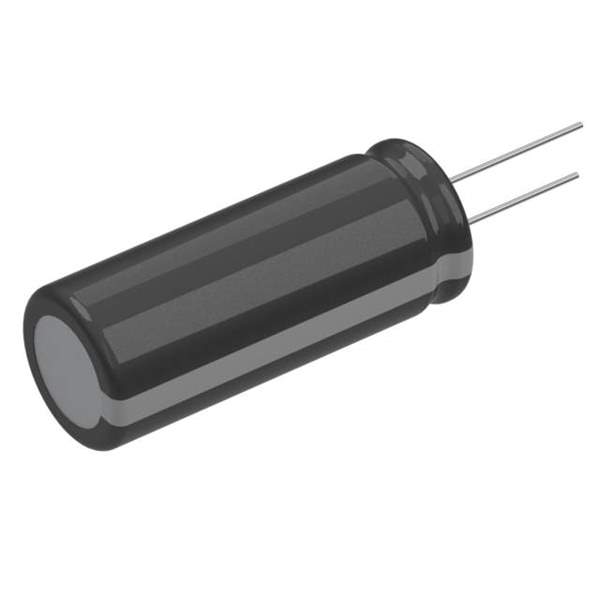

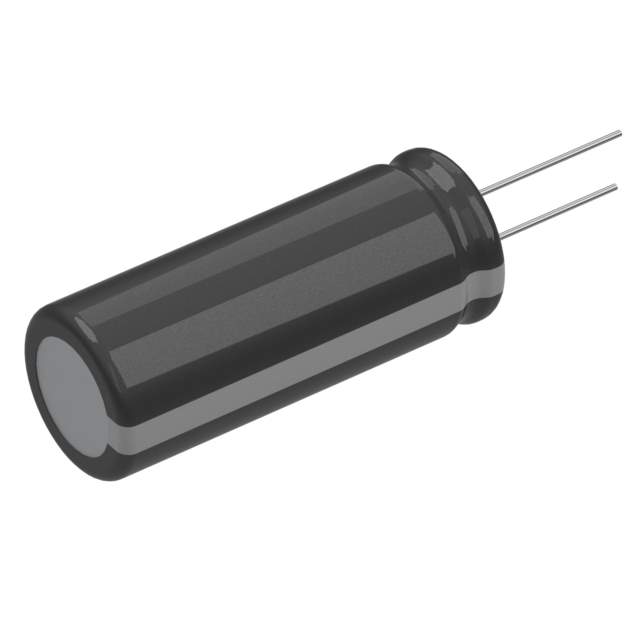

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series CXW
Package Bulk
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 400 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.2 A @ 120 Hz
Ripple Current @ High Frequency 1.8 A @ 10 kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.850" (47.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-400CXW220MEFR18X45
Standard Package 200
Win Source Part Number 1164063-400CXW220MEFR18X45
Ultra Librarian 3D Model Ultra Librarian 400CXW220MEFR18X45 CAD Model

Description

The Rubycon 1164063-400CXW220MEFR18X45 capacitor is a high-quality aluminum electrolytic capacitor that is ideal for general-purpose applications.

  • Capacitance: 220 µF
  • Voltage Rating: 400 V
  • Tolerance: ±20%
  • ESR: Not Specified
  • Lifetime @ 105°C: 5000 Hrs
  • Polarization: Polar
  • Mounting Type: Through-Hole
  • Package/Case: Radial, Can
  • Dimensions: 0.709" Dia (18.00mm)
  • Series: CXW
  • Packaging: Bulk
  • Operating Temperature: -40°C to 105°C
  • Ripple Current @ Low Frequency: 1.2 A @ 120 Hz
  • Ripple Current @ High Frequency: 1.8 A @ 10 kHz
