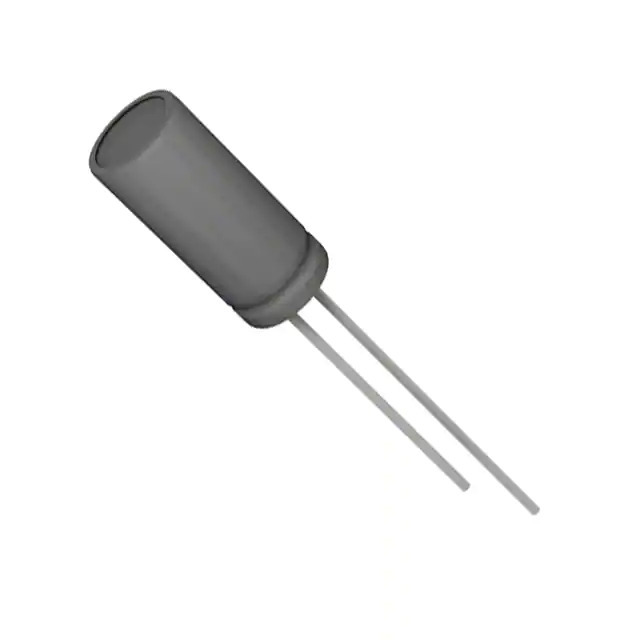

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXJ
Package Tape & Box (TB)
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 137.5 mA @ 120 Hz
Ripple Current @ High Frequency 250 mA @ 100 kHz
Impedance 400 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358017-35YXJ47MTA5X11
Ultra Librarian 3D Model Ultra Librarian 35YXJ47MTA5X11 CAD Model

Description

The Rubycon 1358017-35YXJ47MTA5X11 is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

  • Manufacturer: Rubycon
  • Series: YXJ
  • Capacitance: 47 µF
  • Voltage Rating: 35 V
  • Temperature Range: -40°C to 105°C
  • Package / Case: Radial, Can
  • Mounting Type: Through Hole
  • Lead Spacing: 5.00mm
  • Diameter: 0.197" (5.00mm)
  • Seated Height: 0.492" (12.50mm)
  • Lifetime: 5000 hours @ 105°C
  • Ripple Current: 137.5 mA @ 120 Hz
  • Product Status: Active
