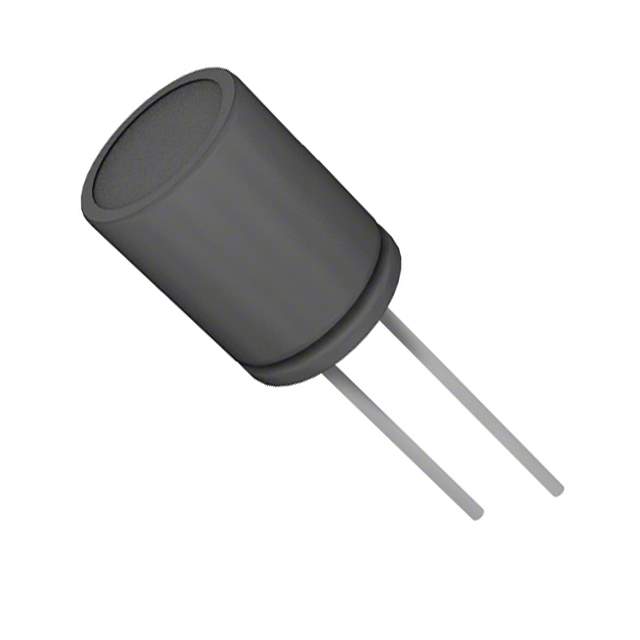

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 605.5 mA @ 120 Hz
Ripple Current @ High Frequency 865 mA @ 100 kHz
Impedance 80 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 1,000
Win Source Part Number 1330243-35YXJ330M10X12.5
Ultra Librarian 3D Model Ultra Librarian 35YXJ330M10X12.5 CAD Model

Description

The Rubycon 1330243-35YXJ330M10X12.5 is an Aluminum Electrolytic Capacitor designed for general-purpose applications.

  • Capacitance: 330 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Impedance: 80 mOhms
  • Lifetime @ Temp.: 10000 hours @ 105°C
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Standard Package: 1,000
  • Size / Dimension: 0.394" Dia (10.00mm)
  • Operating Temperature: -40°C to 105°C
