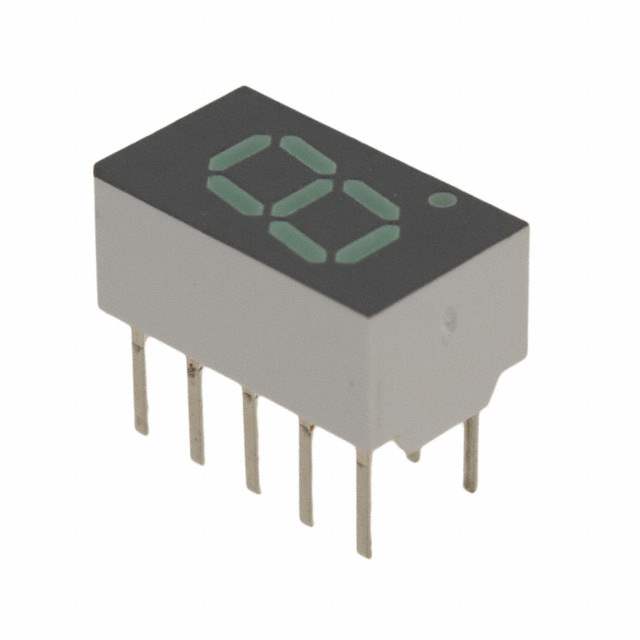

HDSP-7801 Real Image
Same model may have multiple batches, images only for reference.

HDSP-7801

Part No HDSP-7801
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description LED 7-SEG 7.6MM CA GREEN RHD
Datasheet
HDSP-7801 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tube/Rail
Status Active
Number of Characters 1
Digit/Alpha Size 0.30" (7.62mm)
Display Type 7-Segment
Common Pin Common Anode
Color Green
Forward Voltage 2.1V
Current - Test 10mA
Millicandela Rating 6.8mcd
Wavelength - Peak 566nm
Power Dissipation (Max) 105mW
Dimension 10-DIP (0.200", 5.08mm)
Win Source Part Number 016915-HDSP-7801
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HDSP-7801 CAD Model

Description

The HDSP-7801 is a 7-segment display manufactured by Broadcom Limited. This display has a green color and requires a forward voltage of 2.1V. It has a millicandela rating of 6.8mcd and is designed for use in optoelectronics applications. The display has a digit/alpha size of 0.30" (7.62mm) and a common pin of common anode. It requires a power dissipation (max) of 105mW and operates at a current test of 10mA. The display is available in a tube/rail packaging and has a medium popularity.
