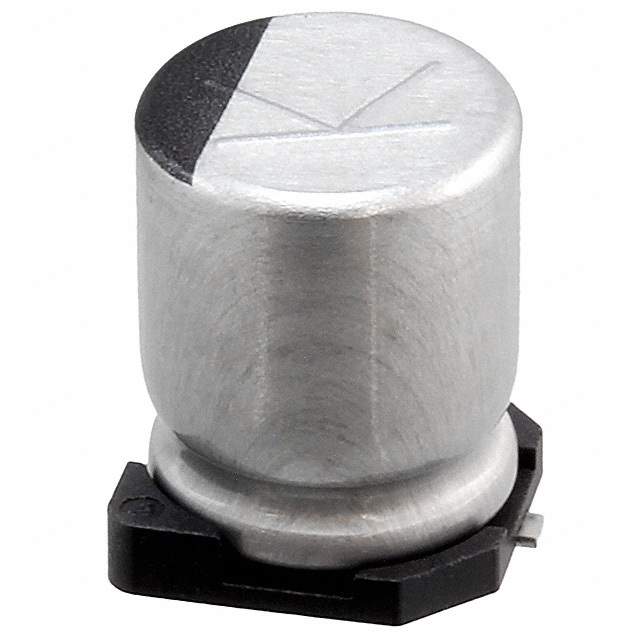

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TKV
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 80mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 374 mA @ 120 Hz
Ripple Current @ High Frequency 850 mA @ 100 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1337739-35TKV100M8X10.5
Ultra Librarian 3D Model Ultra Librarian 35TKV100M8X10.5 CAD Model

Description

The Rubycon 1337739-35TKV100M8X10.5 is an aluminum electrolytic capacitor designed for automotive applications. Rubycon is the manufacturer, and 1337739-35TKV100M8X10.5 is the product.

  • Capacitance: 100 µF
  • Voltage Rating: 35 V
  • Mounting Style: Surface Mount
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Maximum Height: 0.413" (10.50mm)
  • Diameter: 0.315" (8.00mm)
  • Tolerance: ±20%
  • Lifetime: 2000 Hrs @ 105°C
  • Polarized: Yes
  • Package: Radial, can - SMD
  • ESR: 80mOhm @ 100kHz
  • Ripple Current (Low Frequency): 374 mA @ 120 Hz
  • Ripple Current (High Frequency): 850 mA @ 100 kHz
