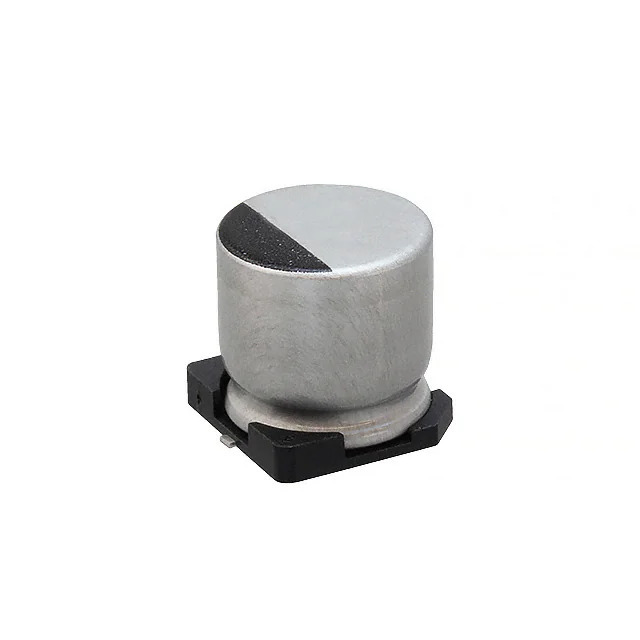

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SGV
Package Tape & Reel
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 450 mA @ 120 Hz
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360163-35SGV220M10X10.5
Ultra Librarian 3D Model Ultra Librarian 35SGV220M10X10.5 CAD Model

Description

The 1360163-35SGV220M10X10.5 is an aluminum electrolytic capacitor from Rubycon.

  • Capacitance: 220 μF
  • Voltage Rating: 35 V
  • Series: SGV
  • Mounting Type: Surface Mount
  • Temperature Range: -55°C to 105°C
  • Application: Automotive
  • Ripple Current: 450 mA @ 120 Hz (Low Frequency)
  • Lifetime: 2000 hours @ 105°C
  • AEC-Q200: Yes
  • REACH: Compliant
  • Package Size: 0.394" (10.00mm) Diameter x 0.413" (10.50mm) Height
  • Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
