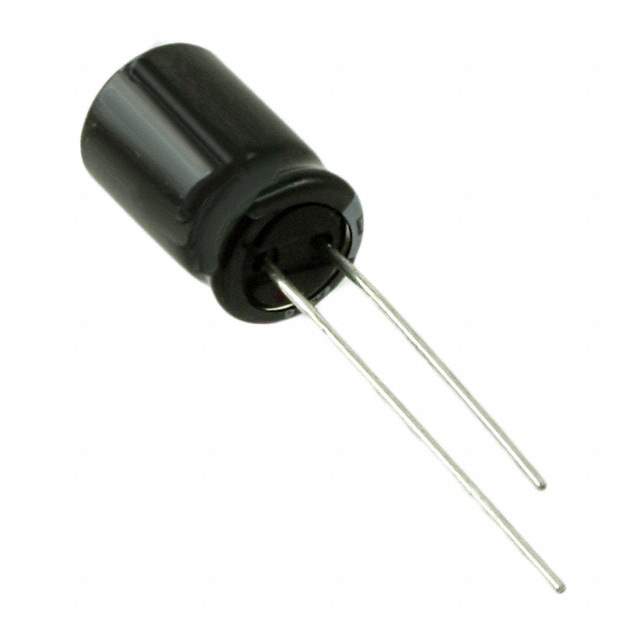

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 170 mA @ 120 Hz
Ripple Current @ High Frequency 204 mA @ 10 kHz
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 35PX100MEFC63X11,1189-1275
Standard Package 2,000
Win Source Part Number 1331280-35PX100MEFC6.3X11
Ultra Librarian 3D Model Ultra Librarian 35PX100MEFC6.3X11 CAD Model

Description

This aluminum electrolytic capacitor has a capacitance of 100 µF and a voltage rating of 35 V.

  • Capacitance: 100 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Ripple Current: 170 mA @ 120 Hz and 204 mA @ 10 kHz
  • Height-Seated (Max): 0.492" (12.50mm)
  • Diameter: 0.248" (6.30mm)
  • Polarized: Yes
  • Lifetime: 1000 Hrs @ 105°C
  • Application: General purpose
