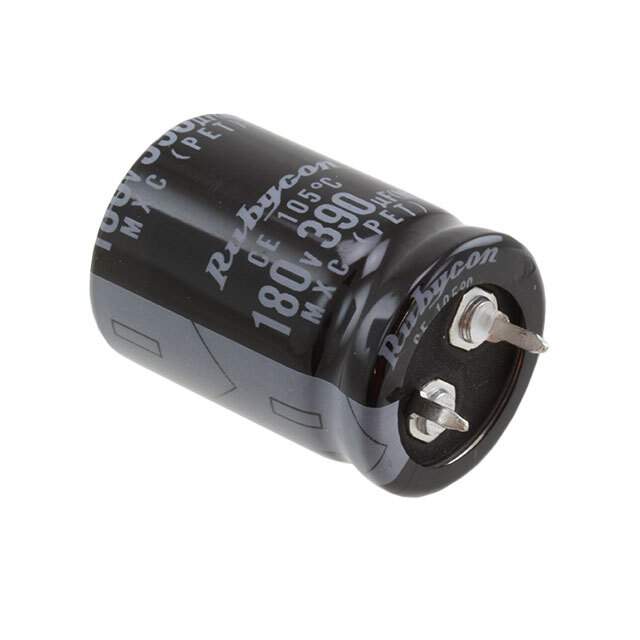

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MXC
Package Bulk
Capacitance 22000 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 4.92 A @ 120 Hz
Ripple Current @ High Frequency 5.658 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1350292-35MXC22000MEFCSN35X40
Ultra Librarian 3D Model Ultra Librarian 35MXC22000MEFCSN35X40 CAD Model

Description

The Rubycon MXC series capacitor is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 22000 µF
  • Voltage Rating: 35 V
  • Package: Radial, Can-Snap-In
  • Diameter: 1.378 inches (35.00mm)
  • Height: 1.654 inches (42.00mm)
  • Tolerance: ±20%
  • Lifetime: 3000 hours @ 105°C
  • Polarized: Yes
  • Lead Spacing: 0.394 inches (10.00mm)
  • ESR: -
  • Ripple Current: 4.92 A @ 120 Hz
  • Ripple Current: 5.658 A @ 10 kHz
