Same model may have multiple batches, images only for reference.

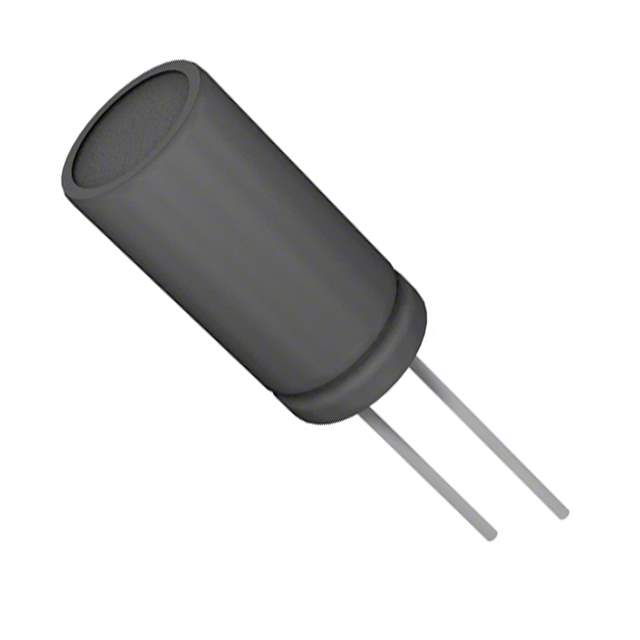

25YXJ1000M10X20 Real Image
Same model may have multiple batches, images only for reference.

25YXJ1000M10X20

Part No 25YXJ1000M10X20
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 25V RADIAL / 1000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.05 A @ 120 Hz
Ripple Current @ High Frequency 1.4 A @ 100 kHz
Impedance 46 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-1241
Standard Package 2,000
Win Source Part Number 1330502-25YXJ1000M10X20
Ultra Librarian 3D Model Ultra Librarian 25YXJ1000M10X20 CAD Model

Description

The Rubycon 1330502-25YXJ1000M10X20 is a bulk packaged aluminum electrolytic capacitor with a capacitance of 1000 μF and a voltage rating of 25 V.

  • Capacitance: 1000 μF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • ESR: Not Specified
  • Polarity: Polarized
  • Ripple Current (Low Frequency): 1.05 A @ 120 Hz
  • Ripple Current (High Frequency): 1.4 A @ 100 kHz
  • Lifetime: 10,000 hours @ 105°C
  • Polarized: Yes
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 105°C
  • Dimensions: 0.394" Dia (10.00mm) and 0.866" (22.00mm) Height
