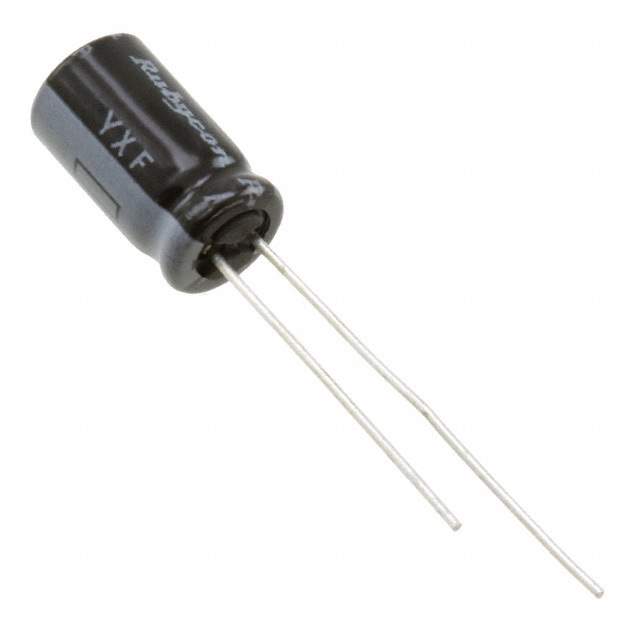

25YXF100MEFCT16.3X11 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Cut Tape (CT),Tape & Box (TB)
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 175 mA @ 120 Hz
Ripple Current @ High Frequency 250 mA @ 100 kHz
Impedance 400 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-3987,1189-3987-ND,1189-3987-1,1189-3987-3,25YXF100MEFCT16.3X11-ND
Standard Package 2,000
Win Source Part Number 1331367-25YXF100MEFCT16.3X11
Ultra Librarian 3D Model Ultra Librarian 25YXF100MEFCT16.3X11 CAD Model

Description

The Rubycon capacitor is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 100 µF
  • Voltage Rating: 25 V
  • Package: Radial, Can
  • Diameter: 0.248 inches (6.30mm)
  • Height: 0.492 inches (12.50mm)
  • Tolerance: ±20%
  • Lifetime: 5000 hours @ 105°C
  • Polarization: Polarized
  • Lead Spacing: 0.098 inches (2.50mm)
  • Impedance: 400 mOhms
  • ESR: -
  • Ripple Current (Low Frequency): 175 mA @ 120 Hz
  • Ripple Current (High Frequency): 250 mA @ 100 kHz
  • Manufacturer: Rubycon
