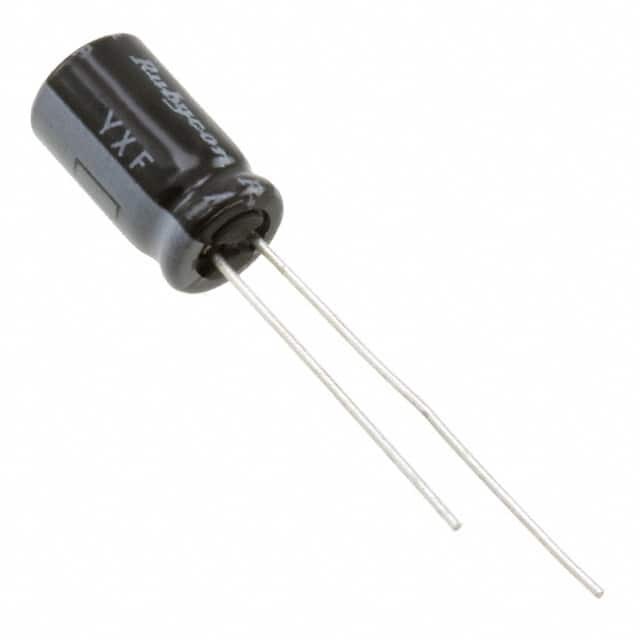

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Package Bulk
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 175 mA @ 120 Hz
Ripple Current @ High Frequency 250 mA @ 100 kHz
Impedance 400 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 852164-25YXF100MEFC6.3X11
Ultra Librarian 3D Model Ultra Librarian 25YXF100MEFC6.3X11 CAD Model

Description

The 25YXF100MEFC6.3X11 is a radial, can aluminum electrolytic capacitor from Rubycon.

  • Series: YXF
  • Application: General-Purpose
  • Capacitance: 100 μF
  • Tolerance: ±20%
  • Voltage: 25V
  • Height Max: 12.50mm
  • Package Quantity: 2,000
  • Mounting Type: Through-Hole
  • Operating Temperature: -40°C to 105°C
  • Lifetime: 5000 hours @ 105°C
  • Polarized: Yes
  • Impedance: 400 mOhms
  • Status: Not recommended for new designs
