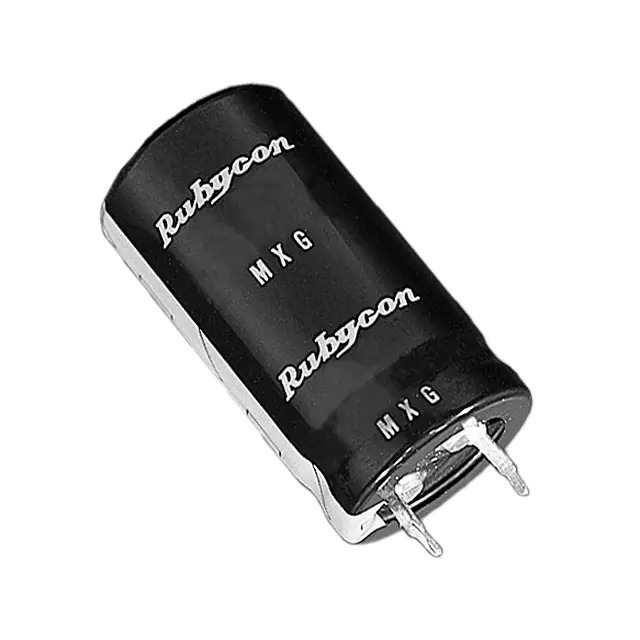

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MXG
Package Bulk
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 250 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.98 A @ 120 Hz
Ripple Current @ High Frequency 2.97 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.787" Dia (20.00mm)
Height - Seated (Max) 1.850" (47.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360776-250MXG470MEFCSN20X45
Ultra Librarian 3D Model Ultra Librarian 250MXG470MEFCSN20X45 CAD Model

Description

The 1360776-250MXG470MEFCSN20X45 is a radial, snap-in aluminum electrolytic capacitor from the MXG series manufactured by Rubycon.

  • Capacitance: 470 µF
  • Voltage Rating: 250 V
  • Application: General-Purpose
  • Tolerance: ±20%
  • Temperature Range: -25°C to 105°C
  • Ripple Current (Low Frequency): 1.98 A @ 120 Hz
  • Ripple Current (High Frequency): 2.97 A @ 10 kHz
  • Lead Spacing: 0.394" (10.00mm)
  • Diameter: 0.787" (20.00mm)
  • Seated Height: 1.850" (47.00mm)
  • REACH: Unaffected
  • ECCN: EAR99
