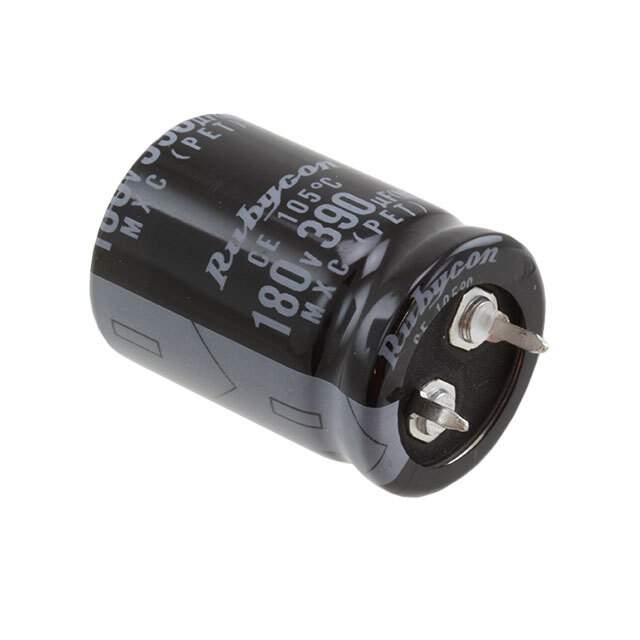

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MXC
Package Bulk
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 200 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 3.55 A @ 120 Hz
Ripple Current @ High Frequency 5.325 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 2.047" (52.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Standard Package 100
Win Source Part Number 1008361-200MXC2200MEFCSN35X50
Ultra Librarian 3D Model Ultra Librarian 200MXC2200MEFCSN35X50 CAD Model

Description

The Rubycon MXC2200MEFCSN35X50 is a 2200 µF aluminum electrolytic capacitor with a tolerance of ±20%.

  • Capacitance: 2200 µF
  • Tolerance: ±20%
  • Voltage Rating: 200 V
  • Ripple Current: 3.55 A @ 120 Hz and 5.325 A @ 10 kHz
  • Height: 2.047 inches
  • Lead Spacing: 0.394 inches
  • Application: General-Purpose
  • Package: Radial, Can-Snap-In
  • Surface-Mount Land Size: -
  • Lifetime: 3000 hours @ 105°C
  • Operating Temperature Range: -40°C to 105°C
  • REACH: Not affected
