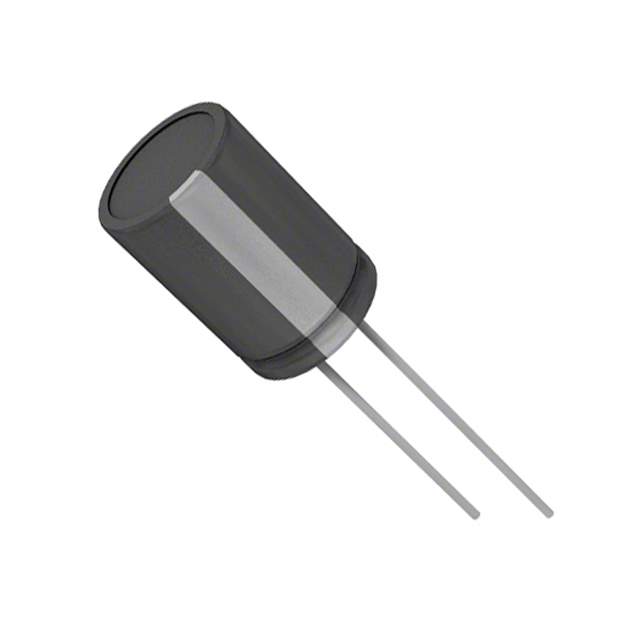

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series LLE
Package Bulk
Capacitance 5.6 µF
Tolerance ±20%
Voltage - Rated 200 V
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 56 mA @ 120 Hz
Ripple Current @ High Frequency 112 mA @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1351967-200LLE5R6MEFC8X9
Ultra Librarian 3D Model Ultra Librarian 200LLE5R6MEFC8X9 CAD Model

Description

The Rubycon LLE series capacitor is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 5.6 µF
  • Voltage Rating: 200 V
  • Series: LLE
  • Package: Radial, Can
  • Size/Dimension: 0.315 inches (8.00mm)
  • Height: 0.433 inches (11.00mm)
  • Tolerance: ±20%
  • Lifetime: 12000 hours @ 105°C
  • Polarization: Polarized
  • Lead Spacing: 0.138 inches (3.50mm)
  • ESR: -
  • Ripple Current: 56 mA @ 120 Hz and 112 mA @ 100 kHz
