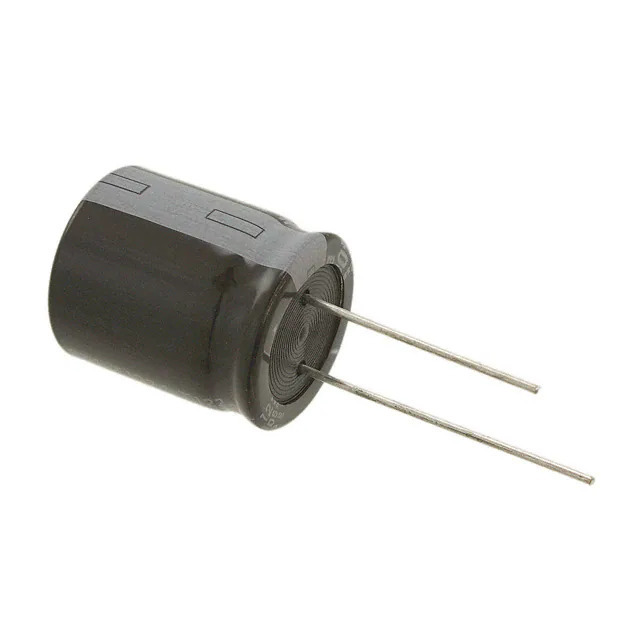

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series BXW
Package Bulk
Product Status Active
Capacitance 82 µF
Tolerance ±20%
Voltage - Rated 200 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 620 mA @ 120 Hz
Ripple Current @ High Frequency 1.55 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.709" (18.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358250-200BXW82MEFR18X16
Ultra Librarian 3D Model Ultra Librarian 200BXW82MEFR18X16 CAD Model

Description

The 1358250-200BXW82MEFR18X16 is an aluminum electrolytic capacitor from Rubycon.

  • Capacitance: 82 µF
  • Voltage Rating: 200 V
  • Series: BXW
  • Application: General Purpose
  • Temperature Range: -40°C to 105°C
  • Lifetime: 10000 hours @ 105°C
  • Ripple Current Rating: 620 mA @ 120 Hz
  • Ripple Current Rating: 1.55 A @ 100 kHz
  • Package: Radial, Can
  • Lead Spacing: 0.295"
  • Diameter: 0.709"
  • Height: 0.709"
