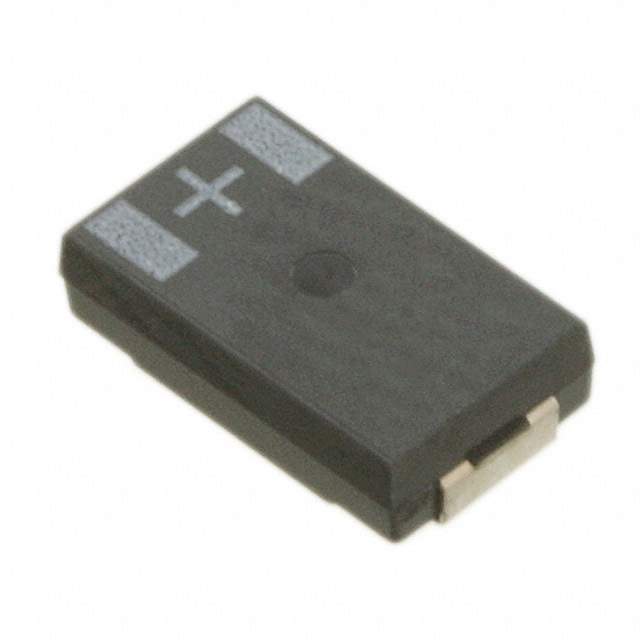

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Packaging Reel - TR
Status Obsolete(EOL)
Type Polymer
Capacitance 220μF
Tolerance ±20%
Voltage Rating 2.5V
ESR 7 mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Ripple Current - High Frequency 3A @ 100kHz
Height - Seated (Max) 0.075" (1.90mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Dimension 2917 (7343 Metric)
Win Source Part Number 1002927-2.5SXE220MR07
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2.5SXE220MR07 CAD Model

Description

The Rubycon 1002927-2.5SXE220MR07 is a polymer capacitor that is designed for use in various electronic applications.

  • Capacitance: 220μF
  • Voltage Rating: 2.5V
  • Tolerance: ±20%
  • ESR Rating: 7 mOhm
  • Ripple Current: 3A @ 100kHz
  • Lifetime: 2000 hours @ 105°C
  • Mounting Type: Surface Mountable
  • Surface Mount Land Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Packaging: Reel - TR
  • Height: 0.075" (1.90mm)
  • Series: Rubycon
  • Category: Capacitors
  • Status: Obsolete (EOL)
  • Popularity: Medium
