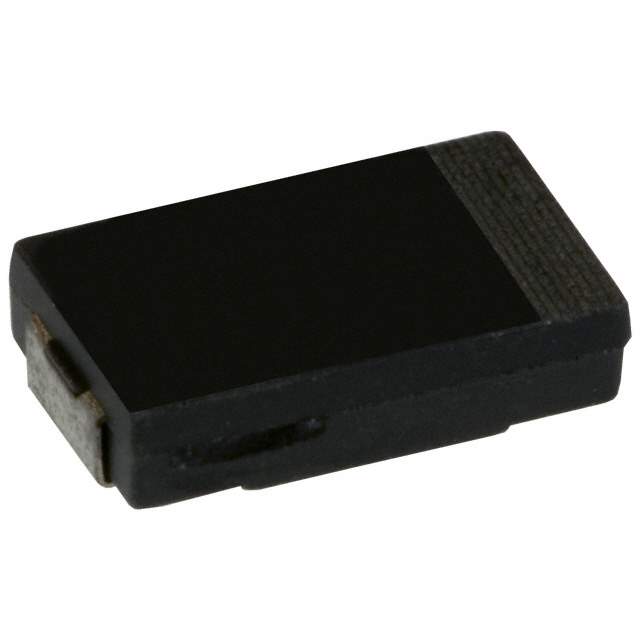

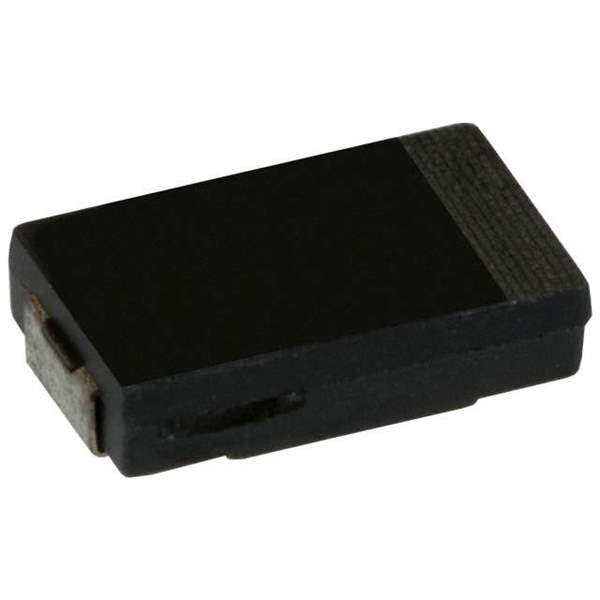

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series SP-Cap CD
Package Tape & Reel (TR)
Product Status Obsolete
Type Polymer
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 4 V
ESR (Equivalent Series Resistance) 18mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 2.5 A @ 100 kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.075" (1.90mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Base Product Number EEF-CD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.22.0020
Other Names EEFCD0G560ER
Standard Package 3,500
Win Source Part Number 1128465-EEF-CD0G560ER
Ultra Librarian 3D Model Ultra Librarian EEF-CD0G560ER CAD Model

Description

The Sunlord electronic component is an aluminum-polymer capacitor that is manufactured by Sunlord.

  • Win Source Part Number: 1128465-EEF-CD0G560ER
  • Series: SP-Cap CD
  • Type: Polymer
  • Package: Tape and Reel (TR)
  • Application: General Purpose
  • Height Seated: 0.075 inches (1.90 mm)
  • Standard Package: 3,500
  • Mounting: Surface Mount Technology (SMT)
  • Capacitance: 56 µF
  • Tolerance: ±20%
  • Voltage Rating: 4 V
  • ESR: 18mOhm
  • Lifetime: 1000 hours @ 105°C
  • Surface Mount Land Size: Not Provided
  • Package/Case: 2917 (7343 Metric)
  • Temperature Range: -40°C to 105°C
  • Dimension: 0.287 inches (7.30 mm) L x 0.169 inches (4.30 mm) W
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8532.22.0020
  • Manufacturer: Panasonic Electronic Components
  • Also Known As: EEFCD0G560ER
  • Base Product Number: EEF-CD
  • Product Status: Obsolete
  • Ripple Current: 2.5 A @ 100 kHz
