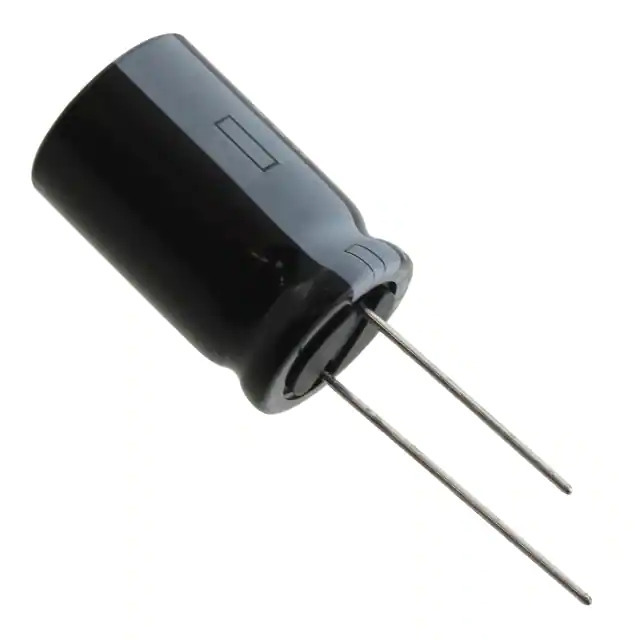

Same model may have multiple batches, images only for reference.
16ZLH3300MEFC16X20 Rubycon
Same model may have multiple batches, images only for reference.

16ZLH3300MEFC16X20

Part No 16ZLH3300MEFC16X20
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 3300UF 20% 16V RADIAL / 3300 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Bulk
Product Status Active
Capacitance 3300 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 2.275 A @ 120 Hz
Ripple Current @ High Frequency 3.25 A @ 100 kHz
Impedance 15 mOhms
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357719-16ZLH3300MEFC16X20
Ultra Librarian 3D Model Ultra Librarian 16ZLH3300MEFC16X20 CAD Model

Description

The Rubycon ZLH series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

  • Manufacturer: Rubycon
  • Series: ZLH
  • Capacitance: 3300 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 2.275 A @ 120 Hz
  • Ripple Current (High Frequency): 3.25 A @ 100 kHz
  • Lead Spacing: 0.295" (7.50 mm)
  • Diameter: 0.630" (16.00 mm)
  • Height: 0.866" (22.00 mm)
  • Mounting Type: Through Hole
  • Lifetime: 10,000 hours @ 105°C
  • Packaging: Bulk
