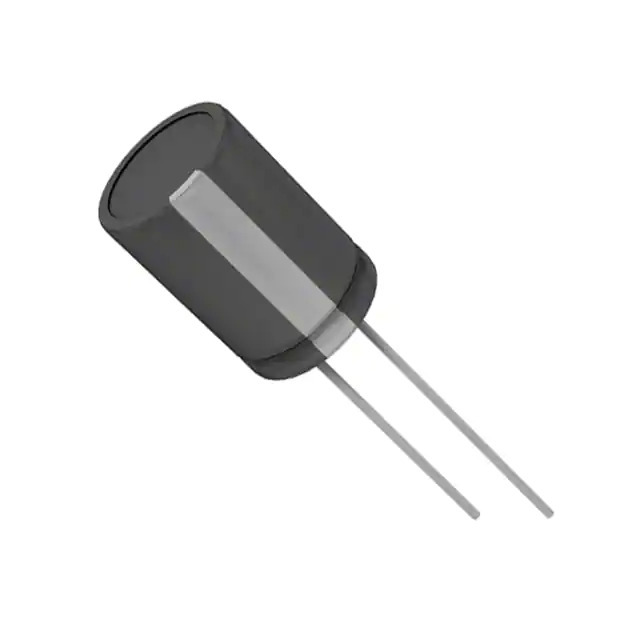

16YXF330MEFCT78X11.5 Rubycon
Same model may have multiple batches, images only for reference.

16YXF330MEFCT78X11.5

Part No 16YXF330MEFCT78X11.5
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 16V RADIAL / 330 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Package Tape & Box (TB)
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 280 mA @ 120 Hz
Ripple Current @ High Frequency 400 mA @ 100 kHz
Impedance 250 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357797-16YXF330MEFCT78X11.5
Ultra Librarian 3D Model Ultra Librarian 16YXF330MEFCT78X11.5 CAD Model

Description

The Rubycon 1357797-16YXF330MEFCT78X11.5 is an aluminum electrolytic capacitor with a capacitance of 330 µF and a voltage rating of 16 V.

  • Manufacturer: Rubycon
  • Series: YXF
  • Capacitance: 330 µF
  • Voltage Rating: 16 V
  • Application: General Purpose
  • Temperature Range: -40°C to 105°C
  • Lifetime: 7000 hours @ 105°C
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Lead Spacing: 3.50mm
  • Size/Dimension: 8.00mm in diameter and 13.00mm in height
  • Ripple Current @ Low Frequency: 280 mA @ 120 Hz
  • Ripple Current @ High Frequency: 400 mA @ 100 kHz
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarization: Polar
  • Impedance: 250 mOhms
