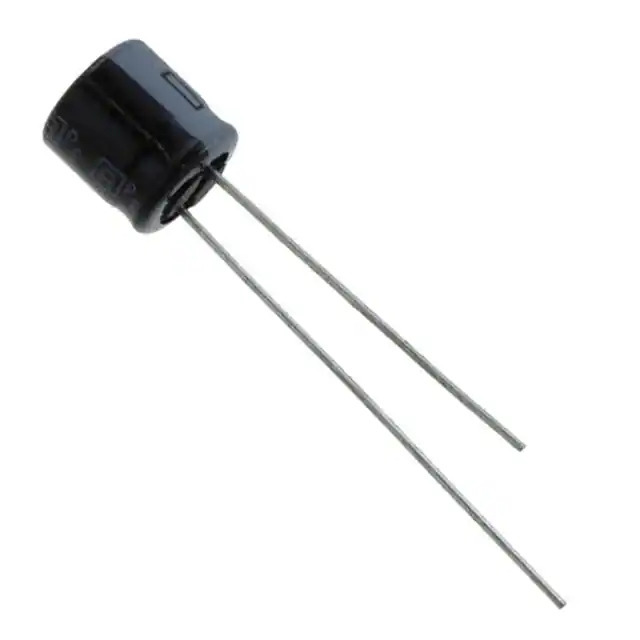

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MS7
Package Bulk
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 110 mA @ 120 Hz
Ripple Current @ High Frequency 120 mA @ 10 kHz
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357637-16MS7100MEFC6.3X7
Ultra Librarian 3D Model Ultra Librarian 16MS7100MEFC6.3X7 CAD Model

Description

The 1171897 is an aluminum electrolytic capacitor manufactured by Rubycon.

  • Category: Capacitors
  • Application: General Purpose
  • Capacitance: 100 µF
  • Tolerance: ±20%
  • Voltage Rating: 16 V
  • Impedance: 80 mOhms
  • Operating Temperature: -40°C to 85°C
  • Lifetime: 1000 hours @ 85°C
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Product Status: Active
