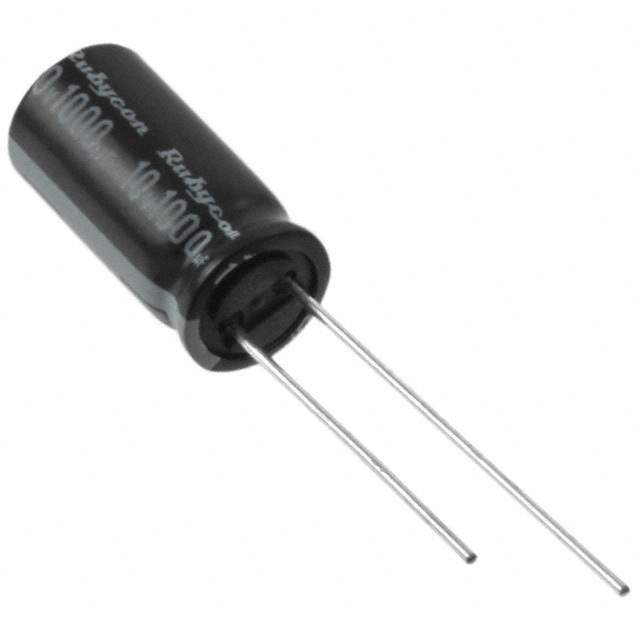

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Bulk
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 8000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 750 mA @ 120 Hz
Ripple Current @ High Frequency 1.25 A @ 100 kHz
Impedance 45 mOhms
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-1716,10ZLH1000MEFC8X16-ND
Standard Package 1,000
Win Source Part Number 961931-10ZLH1000MEFC8X16
Ultra Librarian 3D Model Ultra Librarian 10ZLH1000MEFC8X16 CAD Model

Description

The Rubycon 961931-10ZLH1000MEFC8X16 is an aluminum electrolytic capacitor that belongs to the ZLH series.

  • Capacitance: 1000 µF
  • Voltage Rating: 10 V
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.138" (3.50mm)
  • Height: 0.689" (17.50mm)
  • Tolerance: ±20%
  • Impedance: 45 mOhms
  • ESR (Equivalent Series Resistance): Not Specified
  • Polarization: Polar
  • Package/Case: Radial, Can
  • Temperature Range: -40°C ~ 105°C
  • Lifetime: 8000 Hrs @ 105°C
  • Application: General-Purpose
