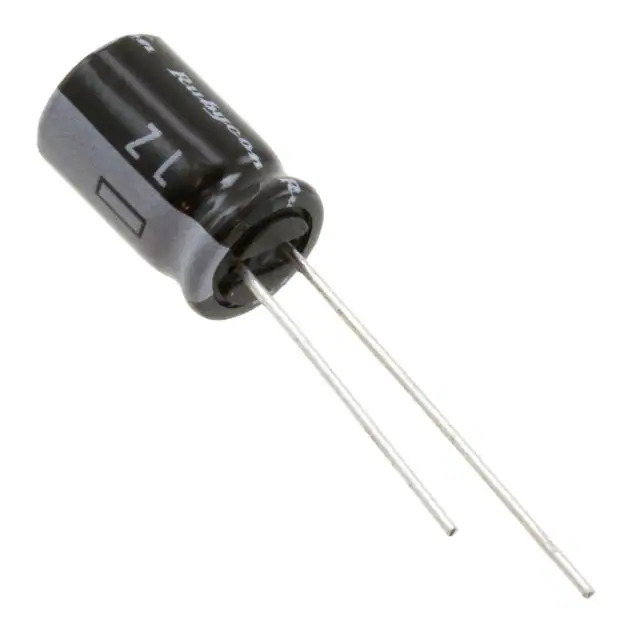

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZL
Package Bulk
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 418 mA @ 120 Hz
Impedance 72 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357768-10ZL470MEFC8X11.5
Ultra Librarian 3D Model Ultra Librarian 10ZL470MEFC8X11.5 CAD Model

Description

The 1357768-10ZL470MEFC8X11.5 is an aluminum electrolytic capacitor manufactured by Rubycon.

  • Capacitance: 470 µF
  • Voltage - Rated: 10 V
  • Series: ZL
  • Application: General Purpose
  • Temperature Range: -40°C to 105°C
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Lead Spacing: 3.50mm
  • Size / Dimension: 8.00mm Dia
  • Lifetime @ Temp.: 3000 Hrs @ 105°C
  • Ripple Current: 418 mA @ 120 Hz
  • Status: Active
  • REACH: Unaffected
