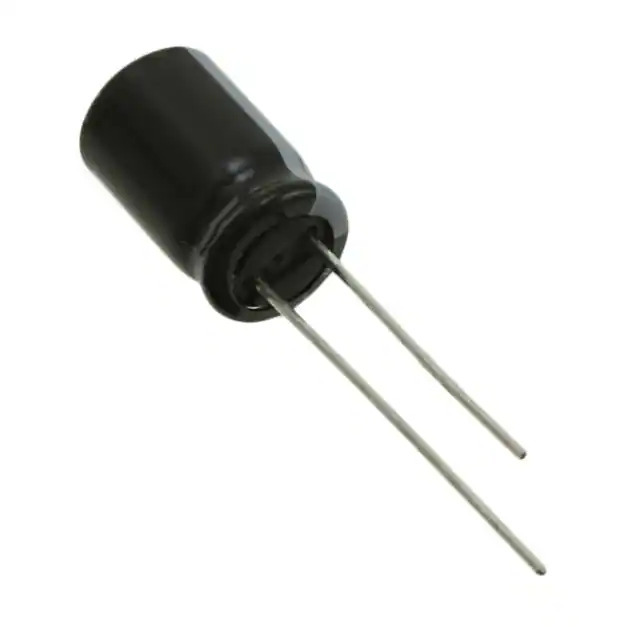

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXG
Package Bulk
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 4000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 352 mA @ 120 Hz
Impedance 130 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357889-10YXG470MEFC8X11.5
Ultra Librarian 3D Model Ultra Librarian 10YXG470MEFC8X11.5 CAD Model

Description

The Rubycon YXG series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications from Rubycon.

  • Capacitance: 470 µF
  • Voltage Rating: 10 V
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 352 mA @ 120 Hz
  • Mounting Type: Through Hole
  • Lead Spacing: 0.138" (3.50mm)
  • Height: 0.512" (13.00mm)
  • Diameter: 0.315" (8.00mm)
  • Lifetime @ Temp.: 4000 Hrs @ 105°C
  • Status: Active
  • REACH Status: Unaffected
  • Polarization: Polar
  • Impedance: 130 mOhms
  • Series: YXG
  • Applications: General Purpose
