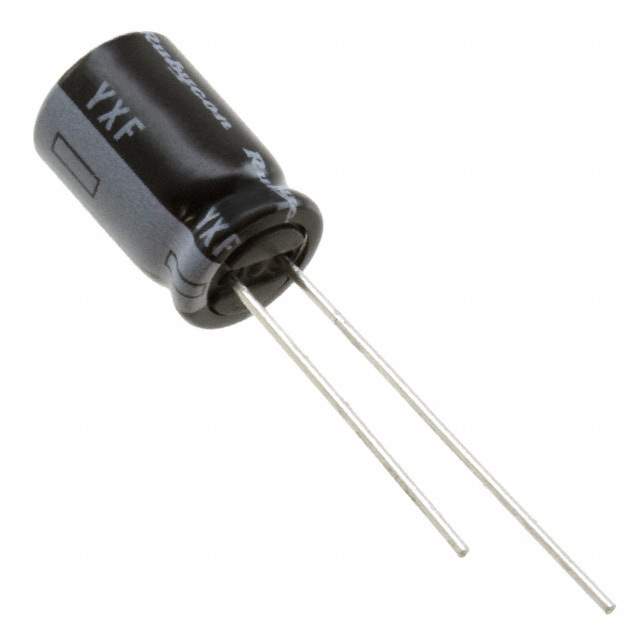

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Packaging Bulk
Status Active
Capacitance 470μF
Tolerance ±20%
Voltage Rating 10V
Lifetime @ Temp. 6000 Hrs @ 105°C
Temperature Range - Operating -40°C to 105°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 300mA @ 120Hz
Ripple Current - High Frequency 400mA @ 100kHz
Impedance 250 mOhm
Lead Spacing 0.138" (3.50mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Through Hole
Dimension Radial, Can
Win Source Part Number 1065293-10YXF470MEFC8X11.5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 10YXF470MEFC8X11.5 CAD Model

Description

The 10YXF470MEFC8X11.5 is a capacitor designed by Rubycon.

  • Capacitance: 470μF
  • Voltage Rating: 10V
  • Tolerance: ±20%
  • Lead Spacing: 0.138" (3.50mm)
  • Impedance: 250 mOhm
  • Lifetime @ Temperature: 6000 Hrs @ 105°C
  • Polarization: Polarized
  • Ripple Current (Low Frequency): 300mA @ 120Hz
  • Ripple Current (High Frequency): 400mA @ 100kHz
  • RoHS Compliant: Yes
  • Application: Various
