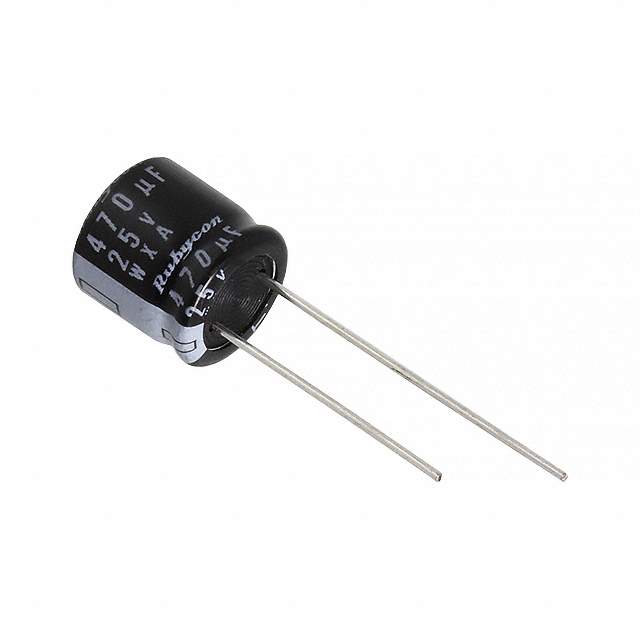

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series WXA
Package Cut Tape (CT) Tape & Box (TB)
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 460 mA @ 120 Hz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1337165-10WXA1000MEFCT810X9
Ultra Librarian 3D Model Ultra Librarian 10WXA1000MEFCT810X9 CAD Model

Description

The Rubycon WXA series aluminum electrolytic capacitors are designed for automotive applications.

  • Capacitance: 1000 µF
  • Voltage Rating: 10 V
  • Tolerance: ±20%
  • ESR: Not Specified
  • Lifetime: 2000 hours @ 105°C
  • Polarization: Polarized
  • Mounting Type: Through Hole
  • Package/Case: Radial, Can
  • Height: 10.50mm
  • Ripple Current: 460 mA @ 120 Hz
  • Rating: AEC-Q200
  • ROHS3: Compliant
  • ECCN: EAR99
