Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 60
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1020948-AXE660124
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian AXE660124 CAD Model

Description

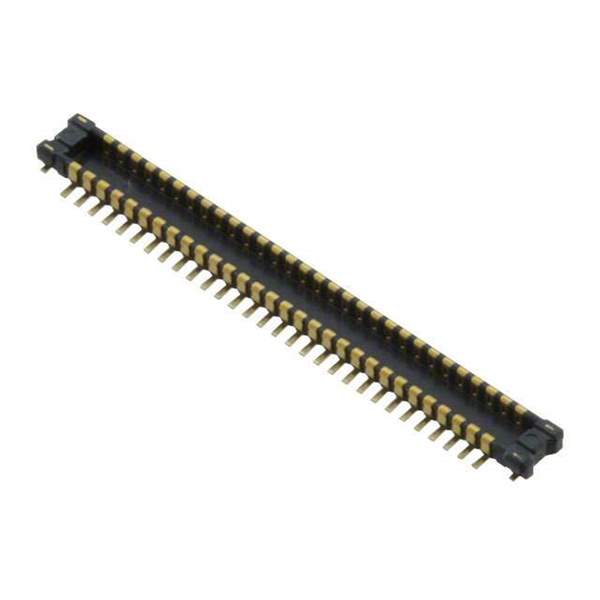

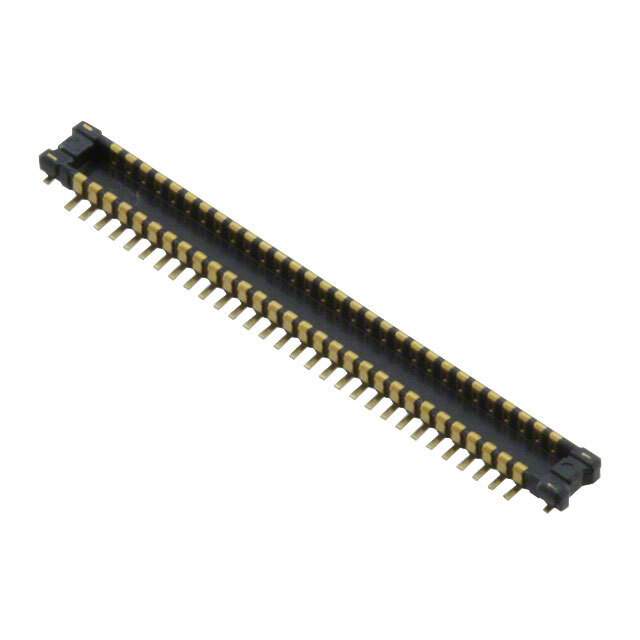

The Panasonic Electric Works 1020948-AXE660124 is a header connector with outer shroud contacts.

  • Positions: 60
  • Pitch: 0.016" (0.40mm)
  • Feature: Designed for solder retention
  • Rows: 2
  • Contact Finish: Gold
  • Mated Stacking Heights: 0.8mm
  • Height Above Board: 0.026" (0.65mm)
  • Mounting: SMD (SMT)
  • Category: Connectors and Interconnects
  • Package Quantity: 1k pcs
