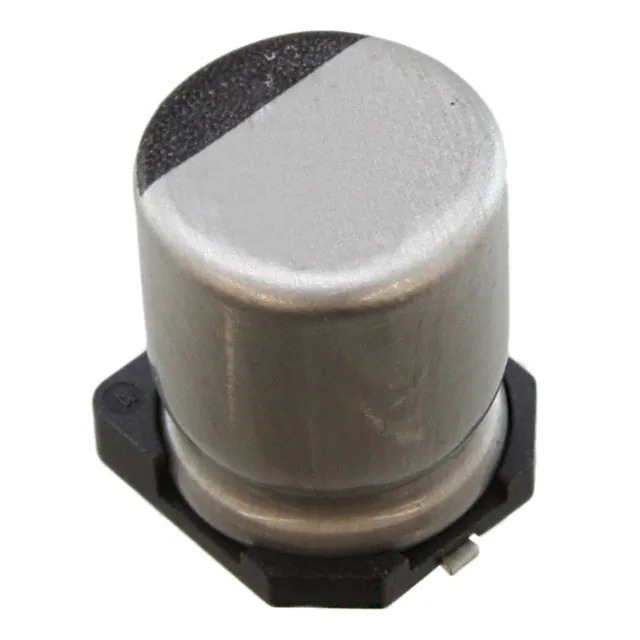

10TZV470M8X10.5 Rubycon
Same model may have multiple batches, images only for reference.

10TZV470M8X10.5

Part No 10TZV470M8X10.5
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 10V SMD / 470 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TZV
Package Tape & Reel
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 360 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Impedance 160 mOhms
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360216-10TZV470M8X10.5
Ultra Librarian 3D Model Ultra Librarian 10TZV470M8X10.5 CAD Model

Description

The Rubycon 1360216-10TZV470M8X10.5 is a high-quality aluminum electrolytic capacitor designed for automotive applications from Rubycon.

  • Capacitance: 470 µF
  • Voltage Rating: 10 V
  • Tolerance: ±20%
  • Lifetime: 2000 hours @ 105°C
  • Package: Radial, can - SMD
  • Size: 0.315" diameter and a height of 0.413"
  • Surface Mount Land Size: 0.327" L x 0.327" W
  • Mounting: Surface mount
  • REACH: Unaffected
  • ECCN: EAR99
  • AEC-Q200 Rating: Yes
  • Low Impedance: Yes
  • Specifically Designed for: Automotive applications
