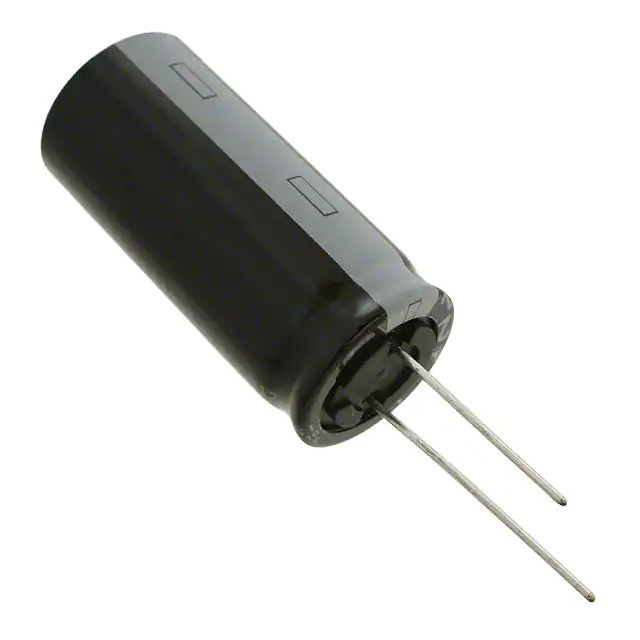

Same model may have multiple batches, images only for reference.

100ZLH820MEFC18X40

Name: 100ZLH820MEFC18X40
Brand: Rubycon
SKU: 1358289
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	100ZLH820MEFC18X40
Manufacturer	Rubycon
Catalog	Aluminum Capacitors
Description	CAP ALUM 820UF 20% 100V RADIAL / 820 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Rubycon
Series	ZLH
Package	Bulk
Product Status	Active
Capacitance	820 µF
Tolerance	±20%
Voltage - Rated	100 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.106 A @ 120 Hz
Ripple Current @ High Frequency	3.51 A @ 100 kHz
Impedance	26 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358289-100ZLH820MEFC18X40
Ultra Librarian 3D Model	Ultra Librarian 100ZLH820MEFC18X40 CAD Model

Description

The Rubycon ZLH series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

Capacitance: 820 µF
Voltage Rating: 100 V
Tolerance: ±20%
Ripple Current (Low Frequency): 2.106 A @ 120 Hz
Ripple Current (High Frequency): 3.51 A @ 100 kHz
Package: Radial, Can
Lead Spacing: 0.295" (7.50mm)
Size/Dimension: 0.709" Dia (18.00mm)
Mounting Type: Through Hole
Height: 1.654" (42.00mm)
Lifetime: 10000 hours @ 105°C
