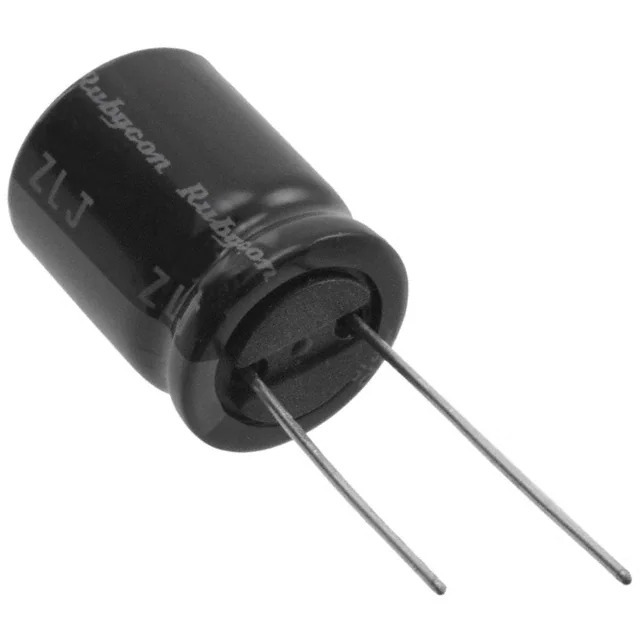

Same model may have multiple batches, images only for reference.
100YXJ330M16X25 Rubycon
Same model may have multiple batches, images only for reference.

100YXJ330M16X25

Part No 100YXJ330M16X25
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 100V RADIAL / 330 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXJ
Package Bulk
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.547 A @ 120 Hz
Ripple Current @ High Frequency 2.21 A @ 100 kHz
Impedance 44 mOhms
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357804-100YXJ330M16X25
Ultra Librarian 3D Model Ultra Librarian 100YXJ330M16X25 CAD Model

Description

The Rubycon YXJ series aluminum electrolytic capacitor with a capacitance of 330 µF and a voltage rating of 100 V is a reliable and versatile component.

  • Series: YXJ
  • Capacitance: 330 µF
  • Voltage Rating: 100 V
  • Application: General Purpose
  • Operating Temperature: -40°C to 105°C
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 1.547 A @ 120 Hz
  • Ripple Current (High Frequency): 2.21 A @ 100 kHz
  • Lead Spacing: 0.295" (7.50mm)
  • Size: 0.630" Dia (16.00mm)
  • Mounting Type: Through Hole
  • Lifetime: 10,000 Hours @ 105°C
  • Package / Case: Radial, Can
