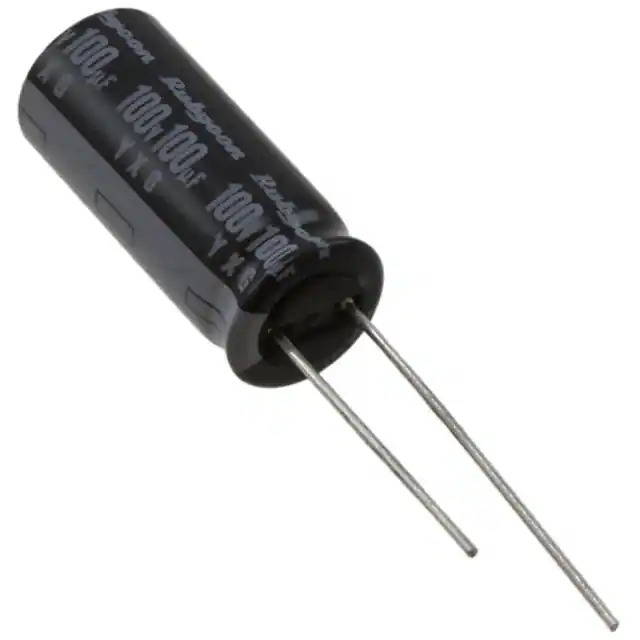

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXG
Package Bulk
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 265.5 mA @ 120 Hz
Ripple Current @ High Frequency 531 mA @ 100 kHz
Impedance 200 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.984" (25.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357687-100YXG100MEFC10X23
Ultra Librarian 3D Model Ultra Librarian 100YXG100MEFC10X23 CAD Model

Description

The YXG series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications. Rubycon

  • Capacitance: 100 µF
  • Voltage Rating: 100 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 265.5 mA @ 120 Hz
  • Ripple Current (High Frequency): 531 mA @ 100 kHz
  • Size (Diameter): 0.394"
  • Height: 0.984"
  • Mounting Type: Through-Hole
  • Lifetime: 5000 hours @ 105°C
  • Polarization: Polarized
  • Package: Can
