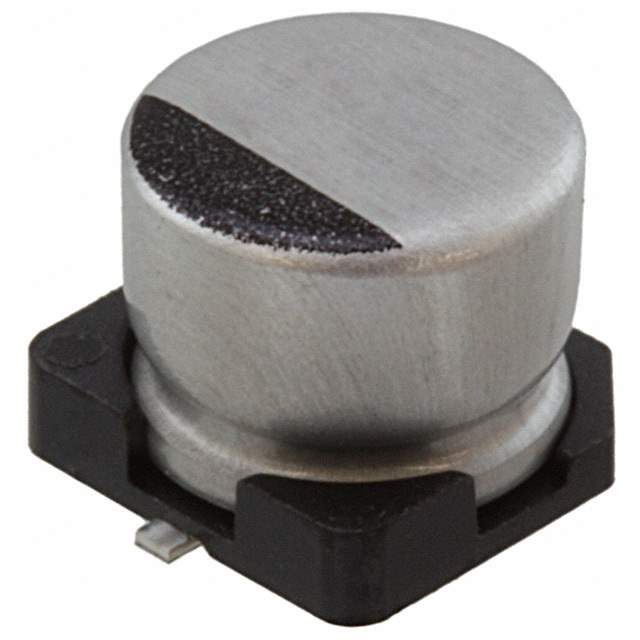

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SEV
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 440 mA @ 120 Hz
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.669" (17.00mm)
Surface Mount Land Size 0.512" L x 0.512" W (13.00mm x 13.00mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 150
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1340394-100SEV100M12.5X16
Ultra Librarian 3D Model Ultra Librarian 100SEV100M12.5X16 CAD Model

Description

The 100SEV100M12.5X16 is a polarized aluminum electrolytic capacitor from Rubycon.

  • Capacitance: 100µF
  • Voltage Rating: 100V
  • Tolerance: ±20%
  • AEC-Q200: Yes
  • Surface Mount Land Size: 0.512” L x 0.512” W (13.00mm x 13.00mm)
  • Package: Radial, Can - SMD
  • Height: 0.669” (17.00mm)
  • Operating Temperature: -40°C to 85°C
  • Application: Automotive
  • Ripple Current: 440mA @ 120Hz
  • Lifetime: 2000 hours @ 85°C
