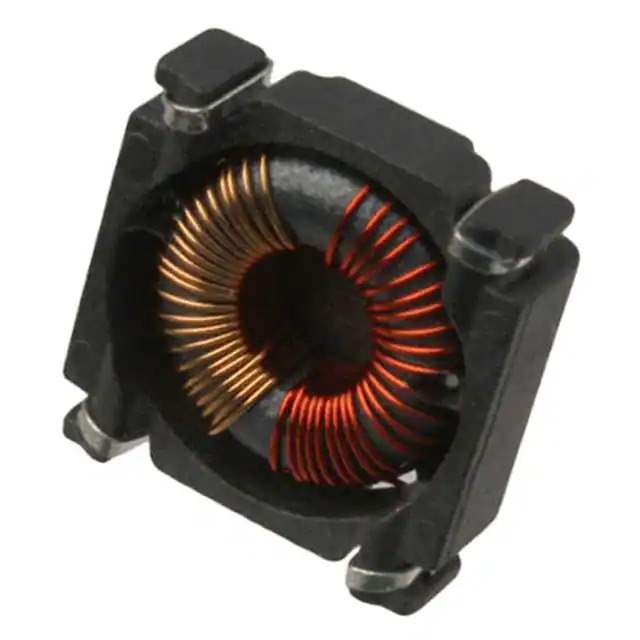

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Pulse
Package Tube
Product Status Active
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 1.22A
DC Resistance (DCR) (Max) 200mOhm
Temperature Range - Operating -40°C ~ 120°C
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height (Max) 0.220" (5.59mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 651414-P0354NL
Ultra Librarian 3D Model Ultra Librarian P0354NL CAD Model

Description

The 651414-P0354NL is a common mode choke filter designed for power line applications.

  • Package: tube
  • Size: 0.500" L x 0.500" W (12.70mm x 12.70mm)
  • Mounting Type: surface mount
  • Height: 0.220" (5.59mm)
  • Function: suppress common mode noise
  • Current Rating: 1.22A
  • Standard Package: 40 pieces
  • DC Resistance: 200mOhm
  • Temperature Range: -40°C to 120°C
  • REACH: compliant
  • ECCN: EAR99
