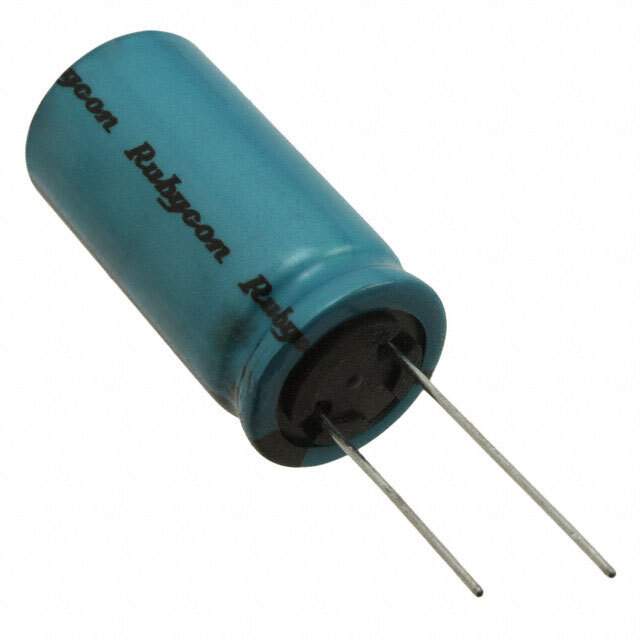

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series RX30
Package Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 4000 Hrs @ 130°C
Temperature Range - Operating -40°C ~ 130°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 1.2 A @ 120 Hz
Ripple Current @ High Frequency 1.6 A @ 100 kHz
Impedance 92 mOhms
Lead Spacing 0.295" (7.50mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.319" (33.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 200
Win Source Part Number 1192170-100RX30470M18X31.5
Ultra Librarian 3D Model Ultra Librarian 100RX30470M18X31.5 CAD Model

Description

The Rubycon RX30 series aluminum electrolytic capacitor is a reliable and high-quality component for automotive applications.

  • Capacitance: 470 µF
  • Voltage Rating: 100 V
  • Lifetime: 4000 hours @ 130°C
  • Mounting Type: through-hole
  • Package: radial can
  • AEC-Q200: yes
  • Impedance: 92 mOhms
  • ESR: not specified
  • Ripple Current (Low Frequency): 1.2 A @ 120 Hz
  • Ripple Current (High Frequency): 1.6 A @ 100 kHz
  • Diameter: 0.709"
  • Height: 1.319"
  • Manufacturer: Rubycon
