Same model may have multiple batches, images only for reference.

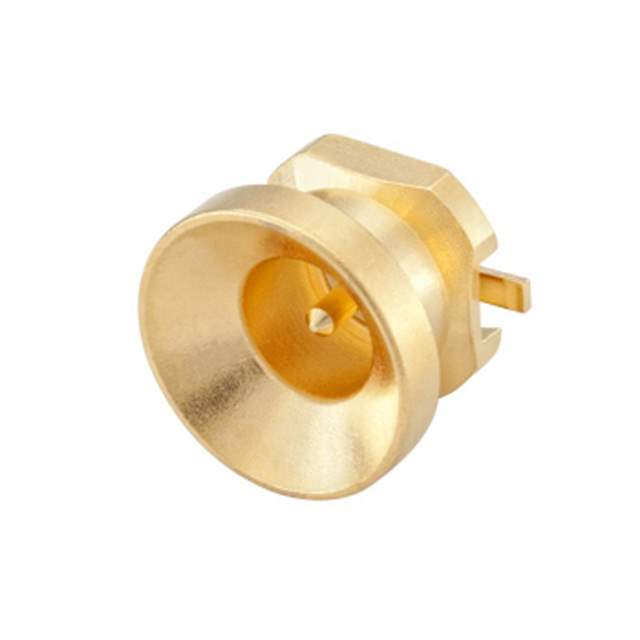

119S147-40ML5 Real Image
Same model may have multiple batches, images only for reference.

119S147-40ML5

Part No 119S147-40ML5
Manufacturer Rosenberger
Catalog Coaxial Connectors (RF)
Description CONN PSMP PLUG STR 50OHM SMD  /  PSMP Connector Plug, Male Pin 50Ohm Surface Mount Solder
Datasheet
119S147-40ML5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Rosenberger
Connector Style PSMP
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Frequency - Max 10 GHz
Number of Ports 1
Features Smooth Bore
Housing Color Gold
Center Contact Material Brass
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polyetheretherketone (PEEK)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 480 V
Mating Cycles 1000
Base Product Number 119S147
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 235584,1868-1059
Standard Package 100
Win Source Part Number 1116518-119S147-40ML5
Ultra Librarian 3D Model Ultra Librarian 119S147-40ML5 CAD Model

Description

The Win Source Part Number 1116518-119S147-40ML5 is a coaxial connector that is designed to provide smooth bore and reliable performance. Win Source Part Number 1116518-119S147-40ML5.

  • Product Type: Coaxial Connector
  • Connector Type: Plug with Male Pin
  • Fastening Type: Snap-On
  • Connector Style: PSMP
  • Voltage Rating: 480V
  • Impedance: 50Ohm
  • Frequency Range: Up to 10GHz
  • Housing Color: Gold
  • Port Count: One
  • Mounting Type: Surface Mount
  • Contact Termination: Solder
  • Category: Connectors, Interconnects
  • Popularity: Medium
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4010
  • Manufacturer: Rosenberger
  • Other Names: 235584 and 1868-1059
