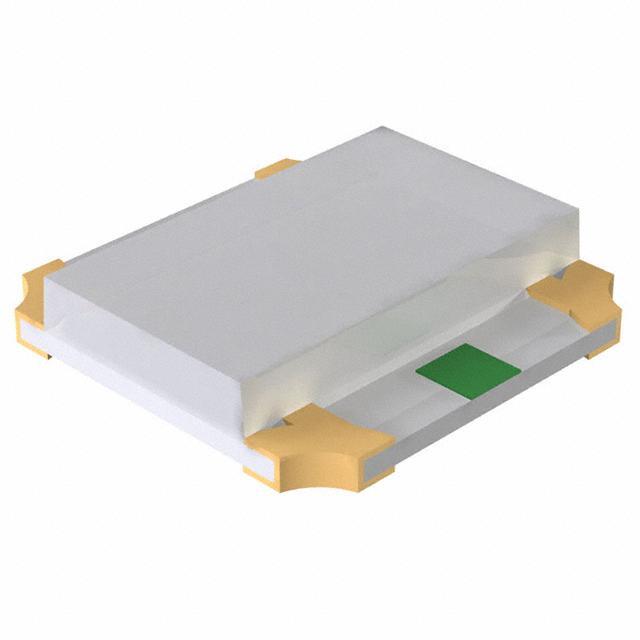

SML-P24MUWT86R Rohm Semiconductor
Same model may have multiple batches, images only for reference.

SML-P24MUWT86R

Part No SML-P24MUWT86R
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED GREEN/RED DIFFUSED 0404 SMD / LED Bi-Color Green/Red 4-Pin Chip 0404(1010Metric) T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Series PicoLED
Packaging Reel package
Color Green, Red
Configuration Independent
Lens Color White
Lens Transparency Diffused
Millicandela Rating 21mcd Green, 52mcd Red
Lens Style/Size Rectangle with Flat Top, 1.00mm x 0.60mm
Voltage - Forward (Vf) (Typ) 2.2V Green, 2.1V Red
Current - Test 20mA Green, 20mA Red
Mounting SMD
Wavelength - Dominant 572nm Green, 620nm Red
Package 0404 (1010 Metric)
Manufacturer Package 0404 (1010 Metric)
Dimension 1.00mm L x 1.00mm W
Height (Maximum) 0.25mm
Win Source Part Number 794772-SML-P24MUWT86R
Popularity Medium
Supply and Demand Status Limited
Family Name SML-P24MUWT86R
Introduction Date June 28, 2010
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian SML-P24MUWT86R CAD Model

Description

The Rohm Semiconductor PicoLED SML-P24MUWT86R is an independent configuration surface mount device with a 0404 (1010 metric) package size.

  • Color: Green and Red
  • Lens: Diffused White
  • Viewing Angle: 120 degrees
  • Millicandela Rating (Green): 21mcd
  • Millicandela Rating (Red): 52mcd
  • Forward Voltage (Green): 2.2V
  • Forward Voltage (Red): 2.1V
  • Current Test: 20mA
  • Dominant Wavelength (Green): 572nm
  • Dominant Wavelength (Red): 620nm
  • Halogen-Free: Yes
  • Popularity: Medium
  • Estimated EOL Date: 2028
