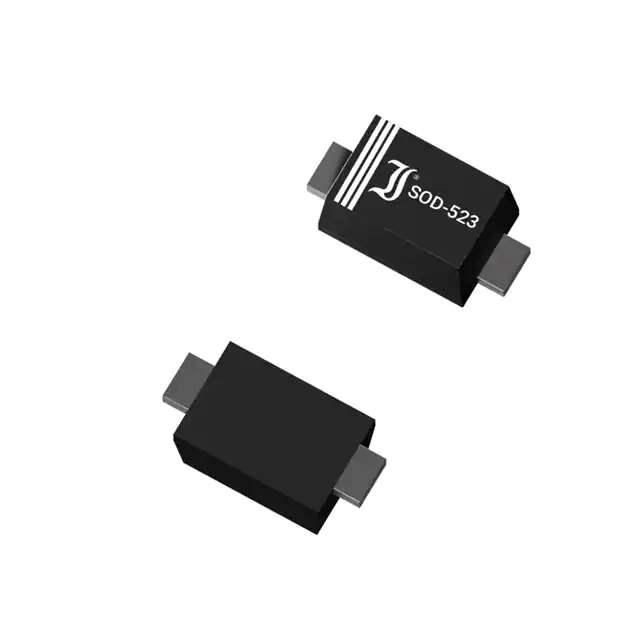

ESD5Z12 Real Image
Same model may have multiple batches, images only for reference.

ESD5Z12

Part No ESD5Z12
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description TVS DIODE 12VWM 17VC SOD523
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V
Voltage - Breakdown (Min) 14.1V
Voltage - Clamping (Max) @ Ipp 17V
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power - Peak Pulse 240W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 55pF @ 1MHz
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SC-79, SOD-523
Supplier Device Package SOD-523
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
HTSUS 8541.10.0000
Win Source Part Number 589965-ESD5Z12
Ultra Librarian 3D Model Ultra Librarian ESD5Z12 CAD Model

Description

The 589965-ESD5Z12 is a Zener type TVS diode designed for general purpose applications manufactured by DIOTEC Electronics Corporation.

  • Type: Zener TVS Diode
  • Application: General Purpose
  • Package: Surface Mount, SC-79, SOD-523
  • Voltage Reverse Standoff: 12V
  • Minimum Breakdown Voltage: 14.1V
  • Power Peak Pulse: 240W
  • Channel: Unidirectional
  • Clamping Voltage: 17V @ Rated Peak Pulse Current
  • Capacitance: 55pF @ 1MHz
  • Operating Temperature Range: -50°C to 150°C
  • Product Line: Active
