Same model may have multiple batches, images only for reference.

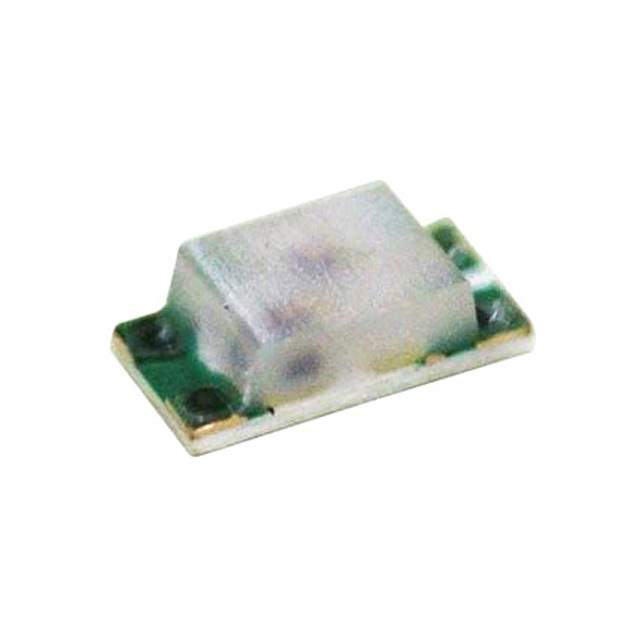

SML-D22MUWT86 Real Image
Same model may have multiple batches, images only for reference.

SML-D22MUWT86

Part No SML-D22MUWT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED RED/YELLOW-GREEN 1608 SMD
Datasheet
SML-D22MUWT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Estimated Pruduction Lead Time 19 Weeks
Features Red, Yellow-Green 620nm Red, 570nm Yellow-Green LED Indication - Discrete 1.9V Red, 2V Yellow-Green 0603 (1608 Metric)
Manufacturer Rohm Semiconductor
Series SML-D22
Package Reel - TR
Mounting Surface Mount
Package 0603 (1608 Metric)
Case / Package 1608 (0603)
Family Name SML-D22
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.2000
Other Part Number SML-D22MUWT86TR, SML-D22MUWT86LN, SML-D22MUWT86DKR, SML-D22MUWT86MM, SML-D22MUWT86LM, SML-D22MUWT86MN, SML-D22MUWT86CT
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934306-SML-D22MUWT86
Ultra Librarian 3D Model Ultra Librarian SML-D22MUWT86 CAD Model

Description

The Rohm Semiconductor SML-D22MUWT86 is an optoelectronic component that is part of the SML-D22 series.

  • Manufacturer: Rohm Semiconductor
  • Part Number: SML-D22MUWT86
  • Series: SML-D22
  • Win Source Part Number: 934306-SML-D22MUWT86
  • LED Indication: Red, Yellow-Green
  • Wavelength: 620nm Red, 570nm Yellow-Green
  • Type: Discrete
  • Package: 0603 (1608 Metric)
  • Mounting: Surface Mountable
  • Package: Reel - TR
  • Quantity per Package: 3000
  • Estimated Production Lead Time: 19 weeks
  • MSL Level: 3 (168 hours)
  • REACH: Unaffected
  • HTSUS code: 8541.40.2000
  • Other part numbers: SML-D22MUWT86TR, SML-D22MUWT86LN, SML-D22MUWT86DKR, SML-D22MUWT86MM, SML-D22MUWT86LM, SML-D22MUWT86MN, and SML-D22MUWT86CT
