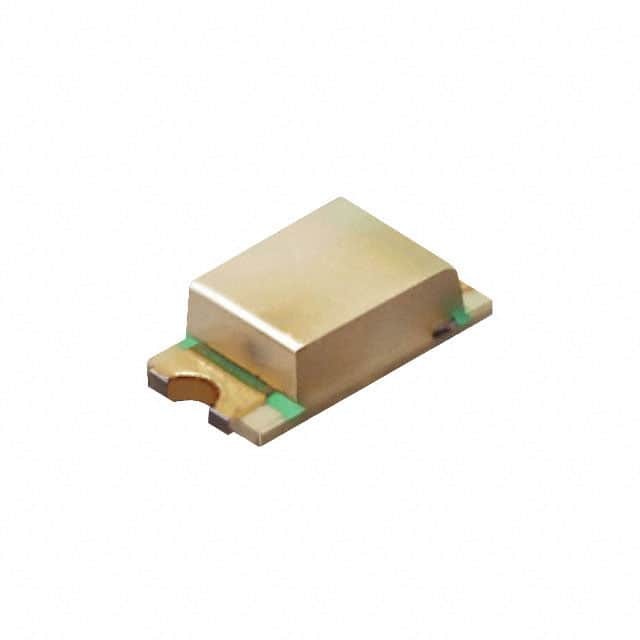

SML-D14U2WT86A Rohm Semiconductor
Same model may have multiple batches, images only for reference.

SML-D14U2WT86A

Part No SML-D14U2WT86A
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description MINI-MOLD CHIP LED / Red 615nm LED Indication - Discrete 2V 0603 (1608 Metric)
Datasheet
SML-D14U2WT86A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Rohm Semiconductor
Series SML-D14(A)
Package Tape & Reel
Color Red
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 160mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Mounting SMD (SMT)
Wavelength - Dominant 615nm
Package / Case 0603 (1608 Metric)
Supplier Device Package 1608 (0603)
Dimension 1.60mm L x 0.80mm W
Height (Max) 0.65mm
Base Product Number SML-D14
Other Names SML-D14U2WT86AAV,SML-D14U2WT86ADKR,SML-D14U2WT86AAT,SML-D14U2WT86AAU,SML-D14U2WT86ATR,SML-D14U2WT86ACT,SML-D14U2WT86AAS
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241649-SML-D14U2WT86A
Ultra Librarian 3D Model Ultra Librarian SML-D14U2WT86A CAD Model

Description

The SML-D14(A) series is a red LED indication discrete optoelectronic component from Rohm Semiconductor.

  • Viewing Angle: -
  • Lens Transparency: Clear colorless
  • Package: Tape and Reel
  • Standard Package: 3,000
  • Height: 0.65mm
  • Dimension: 1.60mm L x 0.80mm W
  • Lens Style: Rectangle with a flat top
  • Lens Size: 1.20mm x 0.80mm
  • Forward Voltage (Vf): 2V
  • Current Test: 20mA
  • Dominant Wavelength: 615nm
  • Millicandela Rating: 160mcd
  • REACH: In compliance with REACH
  • ECCN: EAR99
