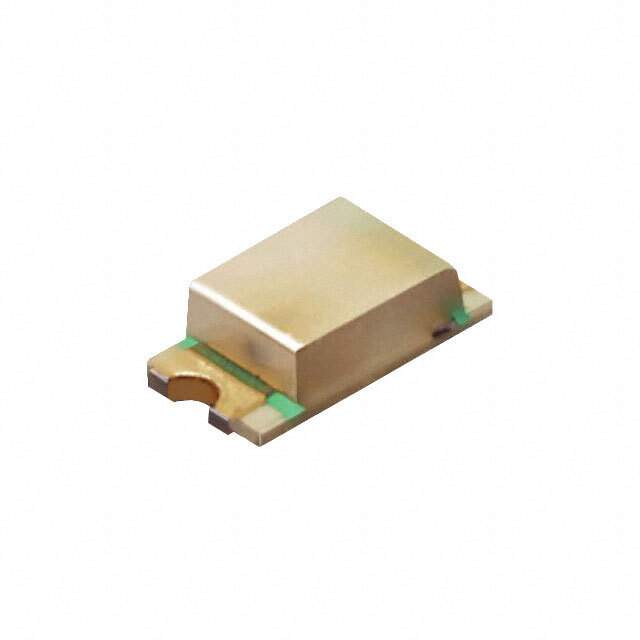

SML-D13MWT86A Real Image
Same model may have multiple batches, images only for reference.

SML-D13MWT86A

Part No SML-D13MWT86A
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description MINI-MOLD CHIP LED / Yellow-Green 571nm LED Indication - Discrete 2.1V 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Rohm Semiconductor
Series SML-D13 (A)
Package Tape & Reel
Color Yellow-Green
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 45mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Mounting SMD (SMT)
Wavelength - Dominant 571nm
Package / Case 0603 (1608 Metric)
Supplier Device Package 1608 (0603)
Dimension 1.60mm L x 0.80mm W
Height (Max) 0.65mm
Base Product Number SML-D13
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names SML-D13MWT86ACT,SML-D13MWT86AAQ,SML-D13MWT86AAP,SML-D13MWT86AAO,SML-D13MWT86ATR,SML-D13MWT86AAN,SML-D13MWT86AAM,SML-D13MWT86ADKR
Standard Package 3,000
Win Source Part Number 1094486-SML-D13MWT86A
Ultra Librarian 3D Model Ultra Librarian SML-D13MWT86A CAD Model

Description

The Rohm Semiconductor SML-D13 (A) series LED indication component is a yellow-green LED with a viewing angle of 120 degrees.

  • Millicandela Rating: 45mcd
  • Forward Voltage: 2.1V
  • Wavelength: 571nm
  • Package: 0603 (1608 Metric)
  • Height: 0.65mm
  • Dimension: 1.60mm L x 0.80mm W
  • Lens Style: Rectangle with a Flat Top
  • Lens Size: 1.20mm x 0.80mm
  • Lens Color: Clear
  • Lens Transparency: Colorless
