Same model may have multiple batches, images only for reference.

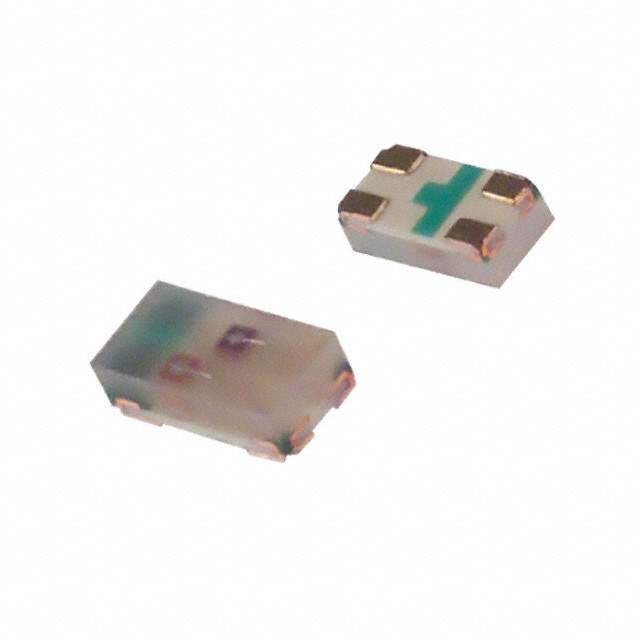

HSMF-C163 Real Image
Same model may have multiple batches, images only for reference.

HSMF-C163

Part No HSMF-C163
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED GREEN/RED DIFFUSED 0603 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Green, Red
Configuration Independent
Lens Color White
Lens Transparency Diffused
Millicandela Rating 45mcd Green, 90mcd Red
Lens Style/Size Rectangle with Flat Top, 1.60mm x 0.80mm
Forward Voltage 3.4V Green, 1.9V Red
Current - Test 10mA Green, 20mA Red
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 525nm Green, 626nm Red
Wavelength - Peak 523nm Green, 637nm Red
Case / Package 0603
Height (Max) 0.50mm
Win Source Part Number 1044005-HSMF-C163
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian HSMF-C163 CAD Model

Description

The Broadcom Limited HSMF-C163 LED is a high-quality optoelectronic component that is ideal for use in a variety of electronic applications.

  • Mounting Technology: SMD (SMT)
  • Configuration: Independent
  • Forward Voltage: 3.4V (green) and 1.9V (red)
  • Viewing Angle: 120°
  • Lens Color: White
  • Lens Transparency: Diffused
  • Millicandela Rating: 45mcd (green) and 90mcd (red)
  • Lens Style/Size: Rectangle with flat top, 1.60mm x 0.80mm
  • Current Test: 10mA (green) and 20mA (red)
  • Wavelength - Dominant: 525nm (green) and 626nm (red)
  • Wavelength - Peak: 523nm (green) and 637nm (red)
  • Height: 0.50mm
  • Popularity: Popular
