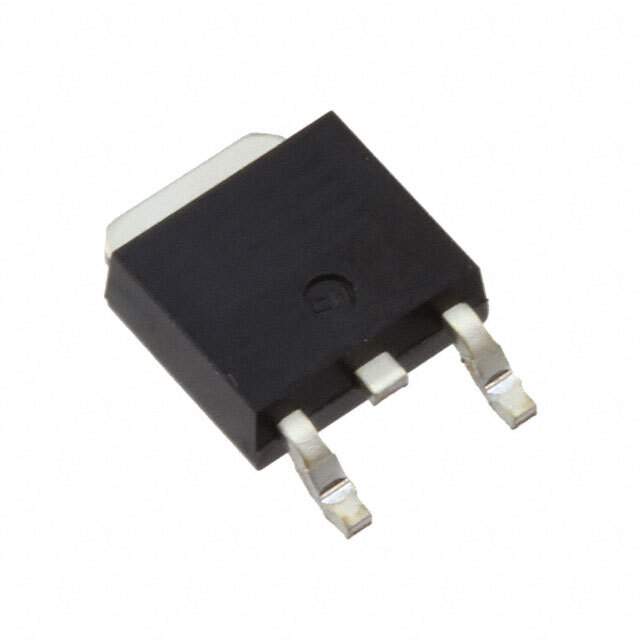

RR601B4STL Real Image1
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 1.15V @ 2A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 2μs
Current - Reverse Leakage @ Vr 10μA @ 400V
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 042346-RR601B4STL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RR601B4STL CAD Model

Description

The RR601B4STL is a standard recovery diode manufactured by Rohm Semiconductor.

  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Features: High reliability and low power loss
  • Applications: Rectification circuits, power supplies, and inverters
  • Reverse Recovery Time: 2μs
  • Maximum Forward Voltage: 1.15V @ 2A
