Same model may have multiple batches, images only for reference.

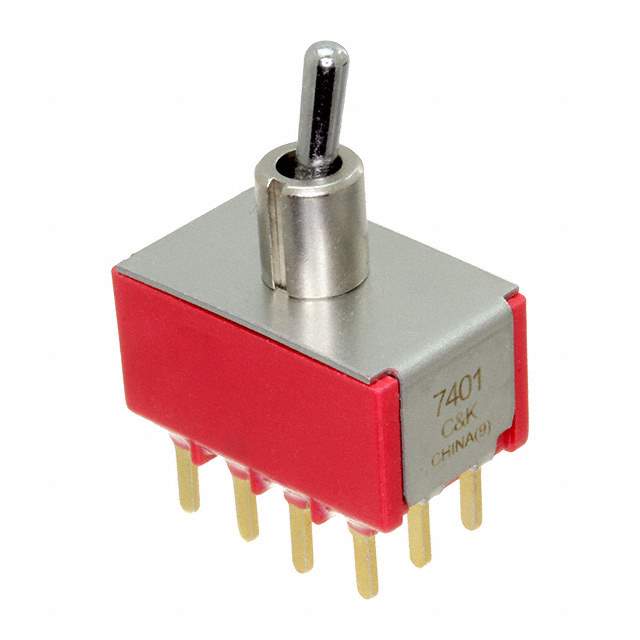

7401SY9CBE Real Image
Same model may have multiple batches, images only for reference.

7401SY9CBE

Part No 7401SY9CBE
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH TOGGLE 4PDT 0.4VA 20V / Toggle Switch 4PDT Through Hole
Datasheet
7401SY9CBE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr C&K
Series 7000
Package Bulk
Mounting Type Through Hole
Circuit 4PDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard Round
Actuator Length 10.67mm
Illumination Non-Illuminated
Termination Style PC Pin
Bushing Thread Unthreaded
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 100,000 Cycles
Base Product Number 7401
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names -7401SY9CBE,2266-7401SY9CBE
Standard Package 1
Win Source Part Number 1144905-7401SY9CBE
Ultra Librarian 3D Model Ultra Librarian 7401SY9CBE CAD Model

Description

This 4PDT toggle switch is a part of the 7000 series and has epoxy-sealed terminals.

  • Series: 7000
  • Terminals: Epoxy-Sealed
  • Actuator Material: Brass
  • Actuator Finish: Chrome-Plated
  • Switch Function: On-On
  • Actuator Type: Standard Round
  • Actuator Length: 10.67mm
  • Electrical Life: 100,000 cycles
  • Illumination: Non-Illuminated
  • Bushing Thread: Unthreaded
  • Mounting: Through Hole
  • Voltage Rating (AC/DC): 20V
  • Current Rating: 0.4VA (AC/DC)
  • Operating Temperature: -30°C to 85°C
  • Manufacturer: C&K
  • Alternative Part Numbers: -7401SY9CBE, 2266-7401SY9CBE
