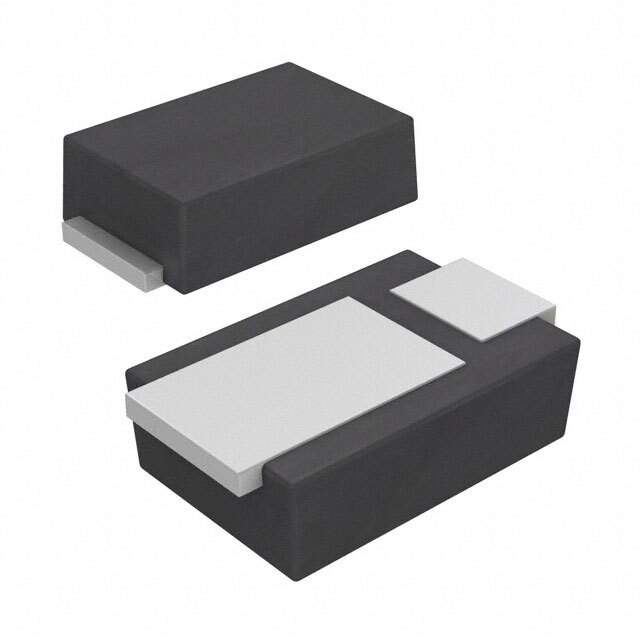

RBR1VWM40ATFTR Real Image
Same model may have multiple batches, images only for reference.

RBR1VWM40ATFTR

Part No RBR1VWM40ATFTR
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Description LOW VF, 40V, 1A, SCHOTTKY BARRIE / Diode Schottky 40 V 1A Surface Mount PMDE
Datasheet
RBR1VWM40ATFTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Rohm Semiconductor
Series Automotive, AEC-Q101
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 520 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 40 V
Mounting SMD (SMT)
Package / Case 2-SMD, Flat Lead
Supplier Device Package PMDE
Operating Temperature - Junction 150°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 846-RBR1VWM40ATFTRCT,846-RBR1VWM40ATFTRDKR,846-RBR1VWM40ATFTR
Standard Package 3,000
Win Source Part Number 1140524-RBR1VWM40ATFTR
Ultra Librarian 3D Model Ultra Librarian RBR1VWM40ATFTR CAD Model

Description

The Rohm Semiconductor 1140524-RBR1VWM40ATFTR is a Schottky diode that belongs to the automotive, AEC-Q101 series. It has a fast recovery speed of <500ns and a forward voltage of 520mV at 1A. This component has a current rating of 1A and a reverse leakage current of 50µA at 40V. The package or case of this component is 2-SMD, Flat Lead and it has a maximum DC reverse voltage of 40V.
