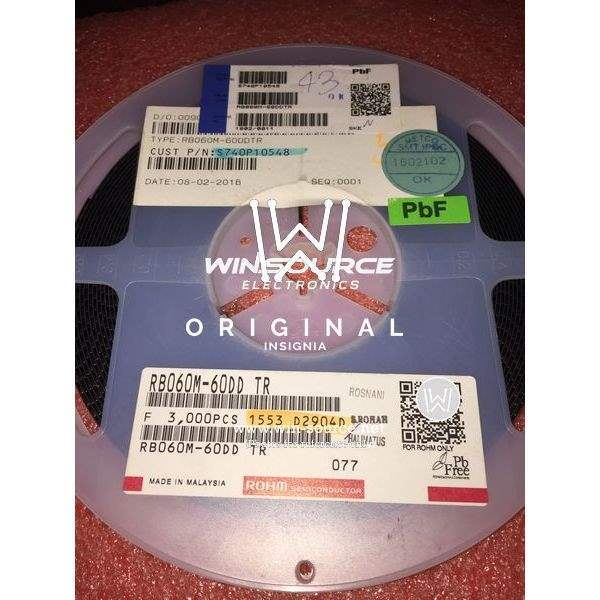

RB060M-60DDTR Rohm Semiconductor RB060M-60DDTR Real Image RB060M-60DDTR label picture
Same model may have multiple batches, images only for reference.
RB060M-60DDTR Rohm Semiconductor RB060M-60DDTR Real Image RB060M-60DDTR label picture
RB060M-60DDTR Rohm Semiconductor RB060M-60DDTR Real Image RB060M-60DDTR label picture
Same model may have multiple batches, images only for reference.

RB060M-60DDTR

Part No RB060M-60DDTR
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 2A PMDU
Datasheet
RB060M-60DDTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 610mV @ 2A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 50μA @ 60V
Mounting SMD (SMT)
Case / Package PMDU
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1091403-RB060M-60DDTR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RB060M-60DDTR CAD Model

Description

The Rohm Semiconductor RB060M-60DDTR is a Schottky diode manufactured.

  • Type: Fast Recovery
  • Reverse Voltage (Max): 60V
  • Average Rectified Current: 2A
  • Forward Voltage @ 2A: 610mV
  • Reverse Leakage Current @ 60V: 50μA
  • Package: PMDU
  • Mounting: SMD (SMT)
  • Operating Temperature (Junction): 150°C (Max)
  • Category: Discrete Semiconductor Products
