Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 51 Weeks
Features dsPIC series Microcontroller IC 16-Bit 60 MIPs 16KB (16K x 8) FLASH 28-SSOP
Manufacturer Microchip Technology
Series Automotive, AEC-Q100, dsPIC™ 33EP, Functional Safety (FuSa)
Package Tube
Core Processor dsPIC
Core Size 16-Bit
Speed 60 MIPs
Connectivity I2C, IrDA, LINbus, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 21
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
Supply Voltage 3V ~ 3.6V
Data Converters A/D 12x12b; D/A 2x12b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount

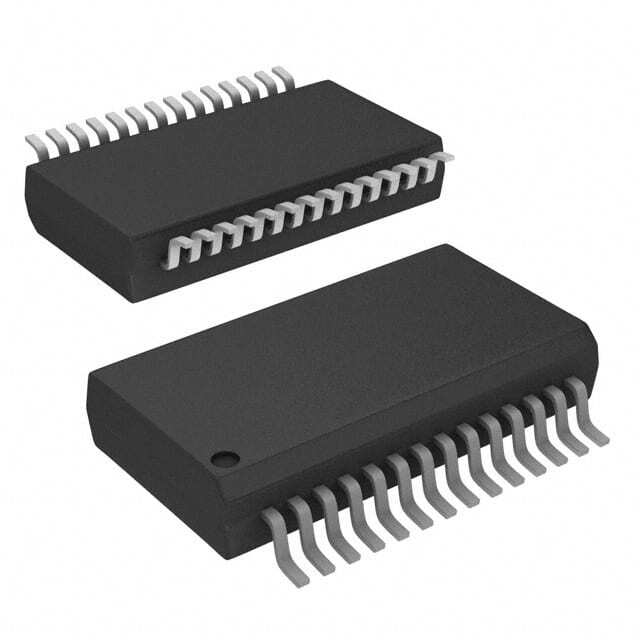

Package 28-SSOP (0.209", 5.30mm Width)
Case / Package 28-SSOP
Family Name DSPIC33EP16GS202
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Quantity per package 47
Popularity High
Supply and Demand Status Balance
Win Source Part Number 917638-DSPIC33EP16GS202-E/SS
Ultra Librarian 3D Model Ultra Librarian DSPIC33EP16GS202-E/SS CAD Model

Description

Microchip Technology's DSPIC33EP16GS202-E/SS

The DSPIC33EP16GS202-E/SS is a high-performance digital signal controller (DSC) from Microchip Technology, designed to deliver the computational power and speed required for advanced digital signal processing applications. This 16-bit DSC integrates the control attributes of a microcontroller (MCU) with the computational prowess of a digital signal processor (DSP), making it an ideal choice for a wide range of applications including motor control, power conversion, sensor processing, and audio signal processing.

Key Features:

  • Enhanced Performance: The DSPIC33EP16GS202-E/SS operates at 70 MIPS (Million Instructions Per Second) with a 16-bit wide data path and 24-bit wide instructions, ensuring efficient handling of complex algorithms and high-speed data processing.
  • Robust Memory: It boasts 16 KB of Flash memory and 2 KB of RAM, providing ample space for application code and data storage.
  • Advanced Peripherals: The device features a rich set of peripherals including PWM outputs, analog-to-digital converters (ADCs), and serial communication modules (UART, SPI, I2C) for versatile interfacing with other components in a system.
  • Live Update Capability: Dual-partition Flash with live update capability allows for firmware updates without interrupting the operation, a critical feature for high-availability systems.
  • Flexible Power Management: The DSC offers various power-saving modes, enabling efficient power management for battery-powered or energy-sensitive applications.
  • Extended Temperature Range: With an operational temperature range from -40°C to +125°C, it is suitable for harsh environments and demanding industrial applications.

Package and Integration:

The DSPIC33EP16GS202-E/SS comes in a compact 28-pin SSOP (Shrink Small Outline Package) which is ideal for space-constrained applications. Its compatibility with Microchip's MPLAB® development environment also simplifies the design process, offering a range of tools for code development, simulation, and debugging.

Applications:

This DSC is versatile and can be used in various applications including:

  • Advanced motor control systems
  • Power supply and conversion systems
  • Industrial automation and process control
  • Audio applications and sound processing
  • Automotive and transportation systems

Overall, the DSPIC33EP16GS202-E/SS is a powerful and flexible solution for developers looking to integrate advanced DSP capabilities with the ease of use of an MCU.
