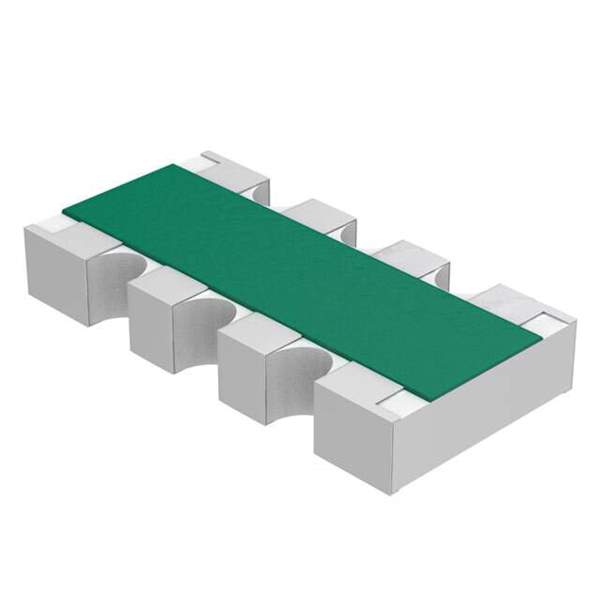

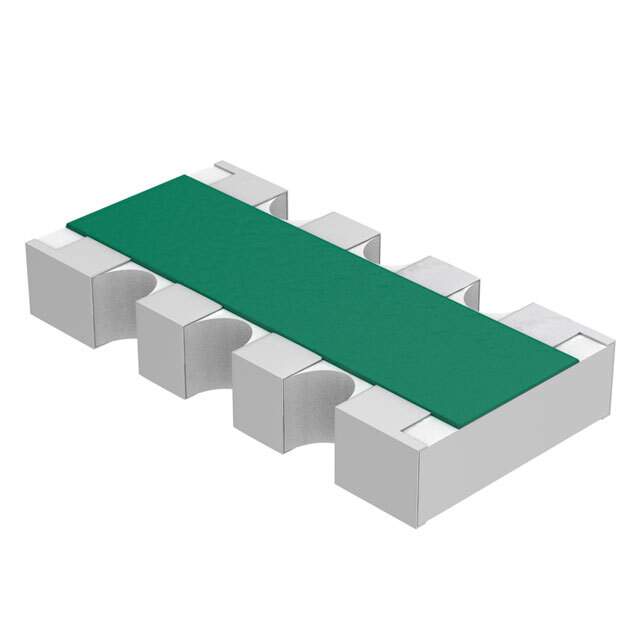

Same model may have multiple batches, images only for reference.

MNR14E0APJ000

Name: MNR14E0APJ000
Brand: Rohm Semiconductor
SKU: 971994
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MNR14E0APJ000
Manufacturer	Rohm Semiconductor
Catalog	Resistor Networks, Arrays
Description	RES ARRAY 4 RES ZERO OHM 1206 / 0.0 Ohm Jumper 62.5mW Power Per Element Isolated 4 Resistor Network/Array 1206 (3216 Metric), Convex, Long Side Terminals
Datasheet	MNR14E0APJ000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Resistor Networks, Arrays
Mfr	Rohm Semiconductor
Series	MNR
Package	Tape & Reel
Circuit Type	Isolated
Resistance (Ohms)	0.0
Tolerance	Jumper
Number of Resistors	4
Number of Pins	8
Power Per Element	62.5mW
Temperature Range - Operating	-55°C ~ 155°C
Applications	Automotive AEC-Q200
Mounting	SMD (SMT)
Package / Case	1206 (3216 Metric), Convex, Long Side Terminals
Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	0.024" (0.60mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0020
Other Names	MNR14000RCT,MNR14000RTR,MNR14000RDKR
Standard Package	5,000
Win Source Part Number	971994-MNR14E0APJ000
Ultra Librarian 3D Model	Ultra Librarian MNR14E0APJ000 CAD Model

Description

The Rohm Semiconductor MNR14E0APJ000 is a resistor network that comes with a package of tape and reel.

Application: Automotive AEC-Q200
Height-Seated (Max): 0.024 inches (0.60mm)
Tolerance: Jumper
Circuit Type: Isolated
Resistors: Four
Pins: Eight
Power Per Element: 62.5mW
Package/Case: 1206 (3216 Metric), convex, long side terminals
